Building Graph Bands with Errors

In summary, the conversation is about finding a program that can build bands instead of just line curves, taking into consideration the errors of a graph. The speaker mentions ROOT as a possible option but suggests avoiding it if possible. They also mention using python/matplotlib with the "fill_between" plotting function as a way to achieve the desired result.
  • #1
ChrisVer
Gold Member
3,378
464
I'm not really sure where this thread belongs...

Do you know any (free) program that can allow to build bands (instead of just line curves) to take into consideration the errors of a graph?

eg if I want to draw:

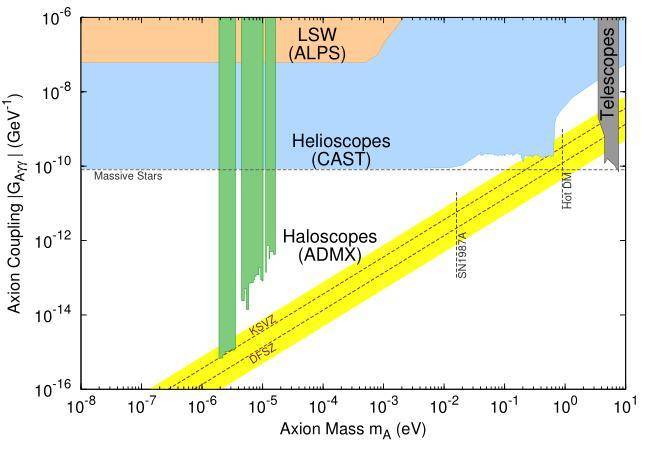

[itex]y= bx + (c \pm \delta c) [/itex] to get something like the yellow band in this (of course it's just an example for what I'm looking):
Χωρίς τίτλο2.jpg

Physics news on Phys.org
  • #2
Looks like a science software question.

ROOT can do it, but I would avoid it if possible...

  • #3
There probably are several programs that do it and probably several ways to do it...a quick search reveals that you should be able to do it using python/matplotlib with the "fill_between" plotting funtion; see this example.

  • Like
Likes ChrisVer
