Calculating Emax in concentric cylinder
- Thread starter donkitano123
- Start date
-
- Tags
- Cylinder Electric field

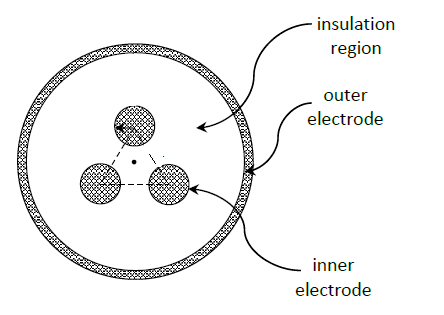

In summary, the general formula for calculating maximum electric field in a concentric cylinder is Emax = V/a ln (b/a). This formula becomes more complex when dealing with three inner cylindrical electrodes. The use of simulation software, such as COMSOL or FEMM 4.2, may be necessary for an exact solution. Access to this software may be available through a university or through connections with someone who has access to electric field modeling software.
- #2
berkeman
Mentor
- 68,307
- 22,034
Welcome to the PF.donkitano123 said:
That would look to be a much more complicated problem than just concentric cylinders. How exact of a solution do you need? Do you have access to simulation software like COMSOL?
https://www.comsol.com/acdc-module
- #3
donkitano123
- 2
- 0
Thanks for the reply
I only have FEMM 4.2 software.
I only have FEMM 4.2 software.
- #4
berkeman
Mentor
- 68,307
- 22,034
Are you in university? What is the context of this question? Do you know anybody with access to electric field modeling software?donkitano123 said:Thanks for the reply
I only have FEMM 4.2 software.
