Calculating Hollow Square Size for a Simple Lifting Machine

  • Thread starter sekedarimaji
  • Start date
  • Tags
    Square
In summary, the conversation discusses creating a simple machine to lift a display using hollow square construction. The weight of the display and support is 25 Kg and there is a question about calculating the correct moment in the construction. The possibility of using a formula to determine the right size of the hollow square is also mentioned. The conversation prompts further consideration of the forces acting on each tube in the construction.
  • #1
sekedarimaji
4
0

Homework Statement


I'am trying to make a simple machine which is to lift a display up and down. The construction mostly using hollow square.

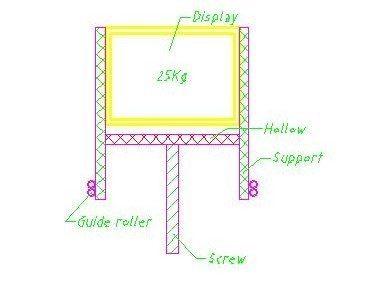

so far I got the weight of the display and the support is 25 Kg and I have this kind of construction.

if simplified become like this

Beam 1.jpg

Homework Equations


which is the right moment happen in that construction?

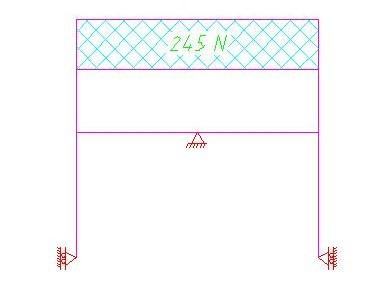

a.
Beam 2.jpg

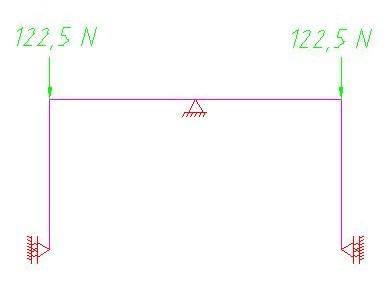

b.
Beam 3.jpg

Is that necessary to calculate the moment?
how do i get the right hollow square size?

The Attempt at a Solution


Physics news on Phys.org
  • #2
Assuming your frame is rigid, both diagrams are equivalent.

  • #3
mfb said:
Assuming your frame is rigid, both diagrams are equivalent.

so calculating the moment is not necessary?
is there any formula to get the right size of hollow square?

  • #4
Which moment, necessary for what?
Right size for what?

  • #5
Ask yourself what forces each tube is subject to. Perhaps start with the horizontal tube.
