In summary, the conversation discusses a diagram showing a motor, rotating shaft, and attached beam. The motor spins the beam in one direction and the question is how to calculate the rotational force at points A and B. It is explained that the force at any point along the arm is equal to the torque divided by the radius. For example, if the torque is 10Nm and point A is 0.1m from the center, the force at A would be 100N. Similarly, if point B is at 0.2m, the force at B would be 50N.
  • #1
Brian23
2
0

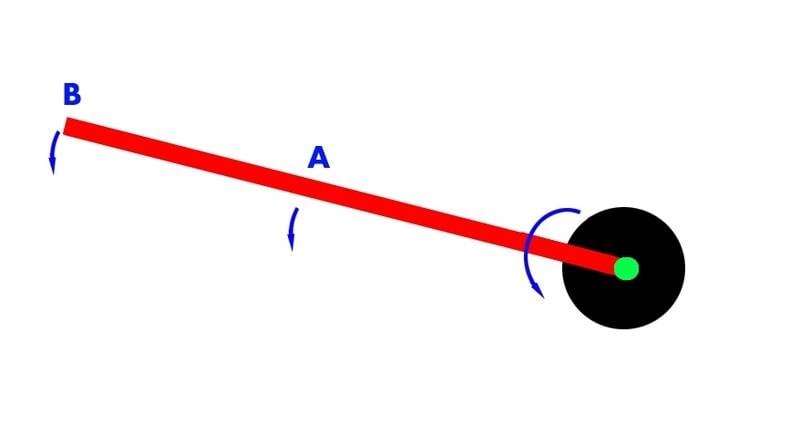

Please have a look at the diagram. The black circle represents a motor, the green circle represents the rotating shaft of the motor, and the red beam is attached to the motor's shaft. The motor spins the red beam counter clockwise in the direction of the arrows.

What I need to know is how to calculate the rotational force at point A, and at point B. Thanks.

Last edited:
Engineering news on Phys.org
  • #2
If the motor produces a torque T then the force at any point along the arm is given by F = T/R where R is the radius (eg the distance from the centre of the motor shaft to the point).

So if the motor Torque was 10Nm and Point A was 0.1m from the centre then the force at A would be 10/0.1 = 100N. If point B is at 0.2m then the force at B would be 10/0.5 = 50N.

  • Like
Likes Brian23
  • #3
Thanks a lot for your help.
