What Does the Graph in My Compressive Flow Experiment Indicate?

He mentions that the nozzle is converging-diverging and is curious about the relationship between the graph and sonic speeds. He also knows the critical pressure ratio for air and notices that as the pressure difference increases, the P/Po values approach the critical ratio. John is looking for help before his Friday deadline. In summary, John is seeking assistance in understanding a graph he created that shows pressure variations in a converging-diverging nozzle. He is curious about the relationship between the graph and sonic speeds, and also notes that the P/Po values approach the critical pressure ratio as the pressure difference increases. He needs help before Friday.
  • #1
bortonj88
16
0

Homework Statement

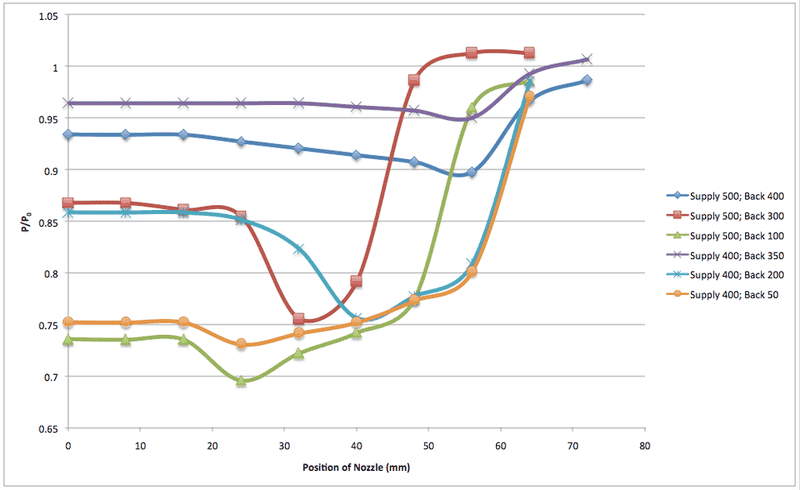

Wondering if anyone could give me a hand, I have created the attached graph. It shows the variations of pressure in the nozzle for different supply pressures and back pressures, in the form, P/Po vs position of the nozzle. and not too sure what its showing


Homework Equations


Wondering if anyone can help me figure out what the graph is showing??


The Attempt at a Solution



Physics news on Phys.org
  • #2
I didn't mention that the nozzle a converging- diverging nozzle. Also I know that at the throat of the nozzle the fluid cannot reach speeds above Mach 1, sonic speeds. However i am wondering where on the graph this relates too.\

I also know that the Pc/Po(critical pressure ratio) for air is 0.5283 and it seems that as the pressure difference becomes larger the closer the P/Po becomes to the critical ratio value.

Any help will be greatly appreciated as this has to be submitted by friday.

Thanks
John

Last edited:
  • #3


I would be happy to assist you with understanding your graph. Based on the information provided, it seems that you have conducted a compressive flow experiment and have plotted the variations of pressure (P) in the nozzle for different supply pressures and back pressures. The graph is in the form of P/Po (pressure ratio) vs position of the nozzle. This type of graph is commonly used in compressive flow experiments to visualize the relationship between pressure and position in a nozzle.

The horizontal axis of your graph represents the position of the nozzle, while the vertical axis represents the pressure ratio. The pressure ratio is the ratio of the pressure at a certain point in the nozzle to the stagnation pressure (Po) at the inlet of the nozzle. This ratio is useful in understanding the effects of different supply and back pressures on the flow behavior in the nozzle.

From your graph, it appears that as the position of the nozzle increases, the pressure ratio decreases. This is expected in compressive flow experiments, as the flow expands and the pressure decreases as it moves through the nozzle. The different curves on the graph represent the variations in pressure ratio for different supply and back pressures. By comparing these curves, you can analyze how changes in supply and back pressures affect the flow behavior in the nozzle.

I hope this explanation helps you understand your graph better. If you have any further questions, please do not hesitate to ask. Good luck with your experiment!
