Constructing a Layout with ALUs in CircuitMaker

  • Engineering
  • Thread starter h2o v2
  • Start date
In summary, the conversation discusses the task of constructing a layout and simulating it using switches and lights for data input and display. The main operation to be carried out is X + Y -> X, and the request for a table of control switch settings is made. The person asking also mentions using gates and an ALU, and asks for clarification on how it works in CircuitMaker.
  • #1
h2o v2
1
0

Homework Statement

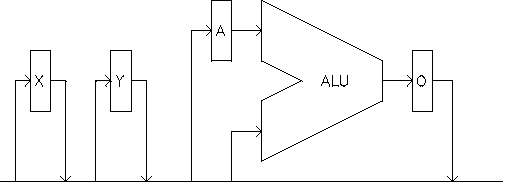

You must construct the following layout :



and simulate it, additionally using switches and lights for data input and display.

The simulation must carry out the operation X + Y -> X.

Produce a table of control switch settings which carries out the operation described.


I'm guessing that X, Y, A should be gates, and O should be the output? Do you think that's correct? Also for the ALU, how does that work? I've never used ALUs in CircuitMaker before so I'm not quite sure how they work.


Homework Equations



N/A


The Attempt at a Solution



N/A, just asking a few questions

Physics news on Phys.org
  • #2
X, Y, A, O are registers few bits

http://cdn3.asteroid.pl/c15/a.fotka.pl/080/059/80059414_800_s.jpg

Last edited by a moderator:

FAQ: Constructing a Layout with ALUs in CircuitMaker

What is an ALU?

An ALU, or Arithmetic Logic Unit, is a digital circuit that performs mathematical and logical operations on binary data. It is a critical component of a computer's central processing unit (CPU) and is responsible for performing tasks such as addition, subtraction, AND, OR, and comparison operations.

Why is an ALU important in circuit design?

An ALU is important in circuit design because it is the primary component responsible for performing calculations and making decisions in a computer. It is also a highly complex and crucial part of the CPU, and any errors in its design can severely affect the overall performance of the computer.

How do you construct an ALU in CircuitMaker?

To construct an ALU in CircuitMaker, you will need to use the built-in library of logic gates and other components. You can then connect these components to create the desired logic and arithmetic operations. It is also essential to pay attention to the timing and delays of the circuit to ensure proper functionality.

What are some common challenges in constructing an ALU in CircuitMaker?

Some common challenges in constructing an ALU in CircuitMaker include managing the complexity of the circuit, ensuring proper timing and delays, and testing for accuracy and functionality. It is also essential to have a solid understanding of digital logic and design principles to create an efficient and error-free ALU.

How can I test and troubleshoot my ALU circuit in CircuitMaker?

CircuitMaker offers various simulation tools that allow you to test and troubleshoot your ALU circuit. You can use the logic analyzer to check the output of each gate and the overall functionality of the circuit. You can also use the timing analyzer to analyze the timing and delays of the circuit. Additionally, you can use the built-in debugging features and test benches to identify and fix any errors in your ALU design.
