Homework Statement

Part A- Charges and Fields
1. Click on the category named Electricity, Magnets, & Circuits, then find Charges and Fields, click on it, then select Run Now!. (You may need to install Java onto your computer)
2. Select Grid and Show Numbers in the green menu box. Place equal and opposite charges exactly 2 meters apart.
3. Now place 3 E-field sensors on the grid; A) one exactly between the 2 charges, B) another 1 m above the first, and C) a 3rd anywhere on the grid that produces a net field vector at 45 degrees.

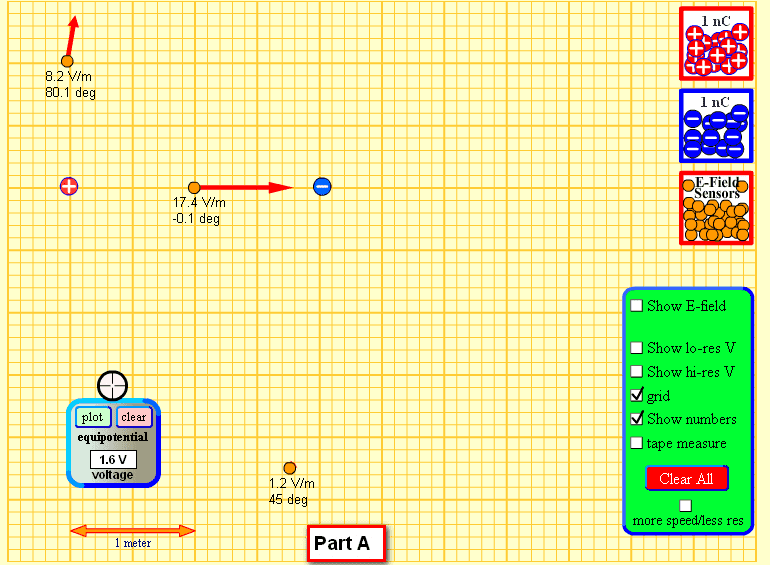

4. Use the Print Screen key to take a picture of your set up.

The photo is the attachment
5. For each position A, B, and C, show calculations of the net E-field vector (size and direction) that closely matches the computer results. (Note: The units shown are V/m; don’t worry because 1 V/m is the same as 1 N/C.). Show your work directly on a separate sheet

Homework Equations

?

The Attempt at a Solution

the question that I am asking is that what equations should I use because I am extremely confused



[Hootenanny]

This is an electrostatic problem involving point charges, so perhaps you could make use of the basic equations relating to electrostatics...



[baba89]

and I do not understand what I am supposed to do.

As a scientist, it is important to understand the fundamental concepts and principles related to electricity, magnets, and circuits. These three components are closely related and understanding their interactions is crucial in many fields of science and technology.

In this specific scenario, the focus is on charges and electric fields. The first step is to understand the concept of electric charges and how they interact with each other. The two charges placed 2 meters apart are referred to as "equal and opposite" charges, which means that one is positively charged and the other is negatively charged. According to Coulomb's law, these charges will exert a force on each other, which is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

Next, we need to understand the concept of electric fields. An electric field is a region in space where an electric charge experiences a force. In this scenario, the electric charges create an electric field around them. To measure this field, we use devices called E-field sensors.

Now let's look at the specific instructions given in the question. First, we need to select the "Grid" option and turn on the "Show Numbers" feature. This will help us to visualize and measure the electric field at different points on the grid.

Next, we need to place the E-field sensors at three different positions: A, B, and C. Position A is between the two charges, position B is 1 meter above A, and position C can be placed anywhere on the grid that produces a net field vector at 45 degrees.

To calculate the net E-field vector at each position, we need to use the formula for electric field intensity (E), which is given by E = F/q, where F is the force exerted by the charges and q is the test charge. In this case, the test charge is 1 Coulomb.

For position A, the net E-field vector will be the sum of the individual electric fields created by the two charges. Since the two charges are equal and opposite, the net field at A will be zero.

For position B, the net field will be the sum of the individual fields created by the two charges, but the distance between the charges will be 3 meters (2 meters between the charges and 1 meter between B and the charges). Using Coulomb's law, we can calculate the magnitude and direction of the net field
