Figuring Out Current Above the Junction: A Puzzling Problem

The equation for current is I=V/R. The attempt at a solution involves adding voltages and resistors, but it is unclear how "above the junction" factors into the equation. The student also mentions trying to use Kirchhoff's Current Law, which states that the sum of currents entering a junction must equal the sum of currents leaving the junction.
  • #1
happytailsgal
3
0

Homework Statement

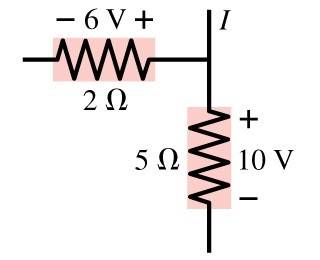

In the figure, what is the current in the wire above the junction?


Homework Equations



V=IR or I=V/R

The Attempt at a Solution


I am really confused as to what "above the junction" means. I tried to add the voltages and add the resistors and divide them to get the current and it didn't work. Then I tried to just do the top voltage and resistor (so it would be three) and that didn't work either. What am I doing wrong?


Attachments

  • current.jpg
    7.5 KB · Views: 898
Physics news on Phys.org
  • #2
What does Kirchhoff's Current Law say?

Above the junction, current is labelled as I


FAQ: Figuring Out Current Above the Junction: A Puzzling Problem

What is the problem about "Figuring Out Current Above the Junction"?

The problem is about understanding the flow of electrical current above a junction point in a circuit.

Why is this problem important?

This problem is important because it helps scientists and engineers design and troubleshoot complex electrical circuits.

What factors influence the current above a junction?

The current above a junction is influenced by the voltage of the circuit, the resistance of the wires and components, and the number and arrangement of junction points.

How can this problem be solved?

This problem can be solved using Ohm's Law and Kirchhoff's Laws, which describe the relationship between voltage, current, and resistance in a circuit.

What are some potential challenges in solving this problem?

Some potential challenges in solving this problem include dealing with non-ideal components, such as resistors with varying resistance, and accounting for the effects of temperature and other external factors on the circuit.
