Finding the Voltage Rating of a Battery in Fig. 3

In summary, to determine the voltage rating of a battery in Fig. 3, you can look for a label or marking on the battery itself, check the manufacturer's specifications, or use a multimeter to measure the voltage directly. The voltage rating of a battery is not the same as its capacity, as the former refers to the amount of electrical potential and the latter refers to the amount of charge it can store. It is generally not recommended to use a battery with a higher voltage rating than what is specified in the circuit. To determine compatibility with a specific device or circuit, you can compare the voltage and current requirements to the battery's specifications. There is no standard voltage rating for all batteries, as different types can have different ratings.
  • #1
letalea
8
0

Homework Statement

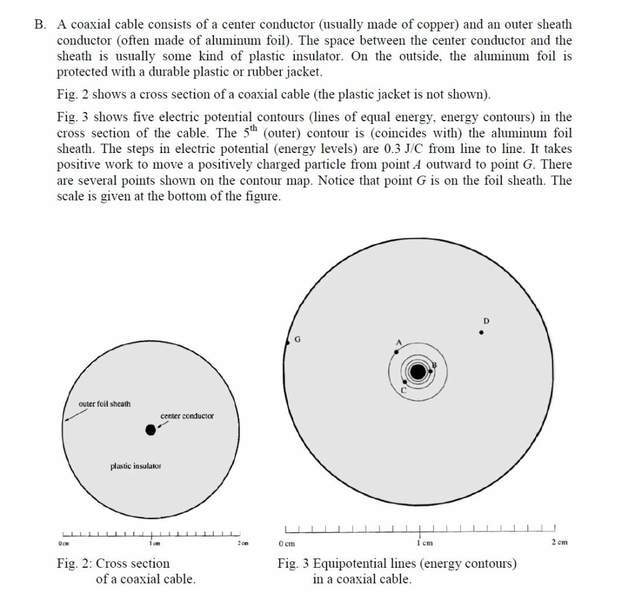

The field generated in Fig. 3 is due to a battery connected between the center conductor and the sheath. What is the voltage rating of the battery? (i.e. what is the electric potential of the positive terminal with respect to the negative terminal of the battery?)

I have attached a file that includes a diagram and relevant information needed to solve this question.


Homework Equations



V=W/Q
W=F*d




The Attempt at a Solution



I have no idea where to even start on this question. Help Please!


Attachments

  • voltage.jpg
    38.8 KB · Views: 393
Physics news on Phys.org
  • #2
Start by listing your known data.


FAQ: Finding the Voltage Rating of a Battery in Fig. 3

How do I determine the voltage rating of a battery in Fig. 3?

To determine the voltage rating of a battery in Fig. 3, you can look for a label or marking on the battery itself that indicates the voltage. If there is no label, you can also refer to the manufacturer's specifications or use a multimeter to measure the voltage directly.

Is the voltage rating of a battery the same as its capacity?

No, the voltage rating and capacity of a battery are two different things. The voltage rating refers to the amount of electrical potential the battery can provide, while the capacity refers to the amount of charge the battery can store.

Can I use a battery with a higher voltage rating in place of the one shown in Fig. 3?

It is generally not recommended to use a battery with a higher voltage rating than what is specified in the circuit. This can cause damage to the circuit or potentially be dangerous.

How do I know if a battery is compatible with a specific device or circuit?

You can determine compatibility by checking the voltage and current requirements of the device or circuit and comparing them to the specifications of the battery. It is important to use a battery with the correct voltage rating to prevent damage.

Is there a standard voltage rating for all batteries?

No, there is not a standard voltage rating for all batteries. Different types of batteries (such as alkaline, lithium, or rechargeable) can have different voltage ratings. It is important to check the specifications of a specific battery to determine its voltage rating.
