Gage blocks are precision measuring tools used in industrial settings for calibrating and verifying the accuracy of other measuring instruments. They are typically made of high-grade steel and have extremely flat and parallel surfaces. The blocks are used by stacking them together in various combinations to create a specific length for measurement. The accuracy of gage blocks is based on the principle of wringing, where the molecular attraction between the blocks creates a strong bond, resulting in a precise measurement.
The accuracy of gage blocks is based on the principle of wringing, which is the molecular attraction between two surfaces. When two gage blocks are placed together, the molecules on the surfaces create a bond, making it difficult to separate them. This bond ensures that the blocks maintain a precise distance between them, resulting in accurate measurements.

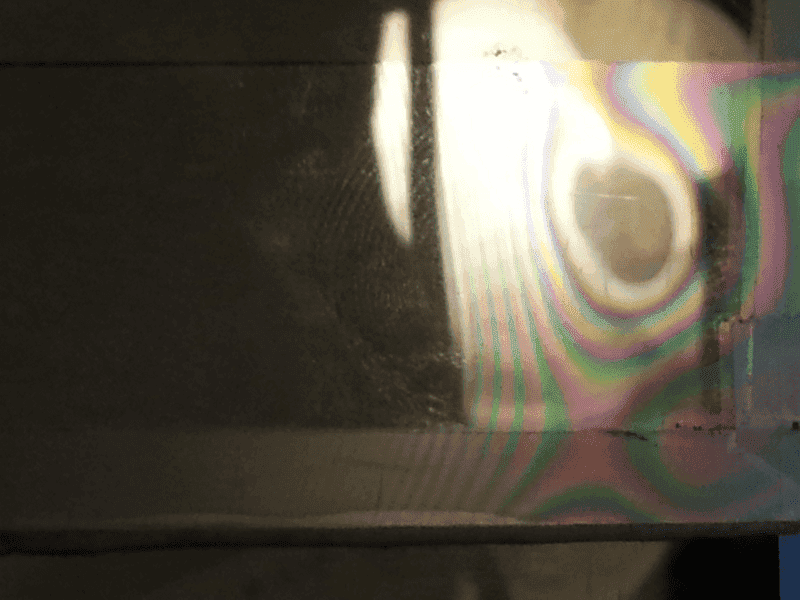

Gage blocks are calibrated and verified using a precision measuring instrument, such as a coordinate measuring machine (CMM). The CMM measures the distance between the gage blocks and compares it to the known standard. If the measurement is within the acceptable tolerance, the gage blocks are considered accurate. They may also be verified using an optical flat and monochromatic light source, which allows for the detection of any imperfections or defects in the blocks.
The accuracy of gage blocks can be affected by various factors, such as temperature, humidity, and wear and tear. Temperature changes can cause the blocks to expand or contract, affecting their dimensions. Humidity can also cause the blocks to rust, which can alter their dimensions. Wear and tear from frequent use can also affect the accuracy of the blocks, making regular calibration and maintenance necessary.
Yes, there are different types of gage blocks for different applications. Standard gage blocks are used for general purpose measurements, while rectangular gage blocks are used for specific measurements, such as angles and height. There are also square, round, and thread gage blocks for more specialized applications. It is important to use the correct type of gage block for the specific measurement to ensure accuracy.
