Hartley Receiver and MATLAB Simulink

In summary, the conversation discusses a new student's experience with a MATLAB assignment on the Hartley Receiver phenomena using Simulink. The student shares their attempt at a solution and asks for help identifying any mistakes. Another student offers to share their answer and the conversation ends with a request for the answer as well.
  • #1
eric336
11
0

Homework Statement


I am totally new to MATLAB. My lecturer wasn't aware of that and just gave us an assignment about explaining the phenomena Hartley Receiver using Simulink.

Homework Equations

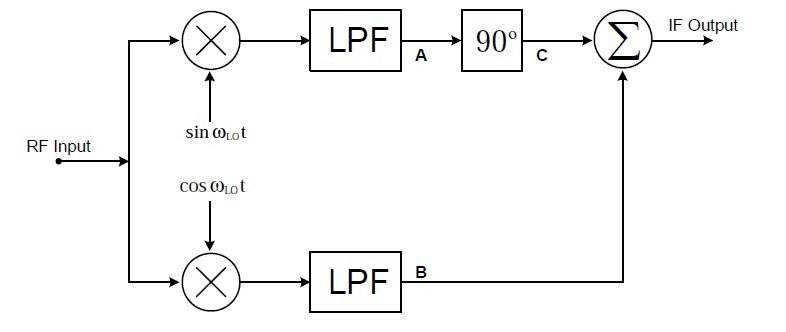

The diagram is attached as first picture.
Using Simulink, prove that the image signal is alleviated at the output.
Given that input signal, x (t ) = ARF cos(wRFt) + Aim cos(wimt)

The Attempt at a Solution

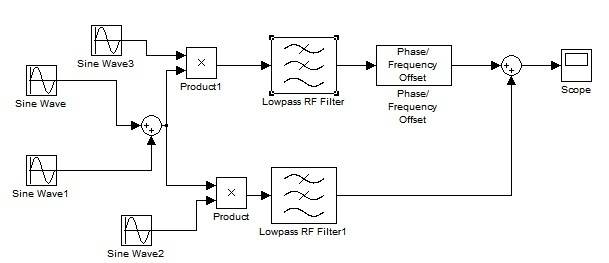

The second picture is what I constructed, looks kinda stupid but yeah, can anyone point the mistakes?
[URL]http://img810.imageshack.us/i/45476004.jpg/[/URL]


Attachments

  • Untitled-1.jpg
    13.3 KB · Views: 613
  • 2.jpg
    15.5 KB · Views: 681
Last edited by a moderator:
