Help with graph units and interpretation

In summary, the conversation is about research on a biological substance and its capacitance and conductivity. The graphs from a computer connected to a BDS are being discussed, but the fundamental units Re(C'), Re(C''), Re(σ'), and lm(σ'') are confusing. The person is questioning how capacitance can be negative in one of the graphs and why there is no difference in units between the two axes. They also mention looking through texts for help, but suspect there may be a labelling error in the graph creation.
  • #1
thebluser
26
0
Hello,

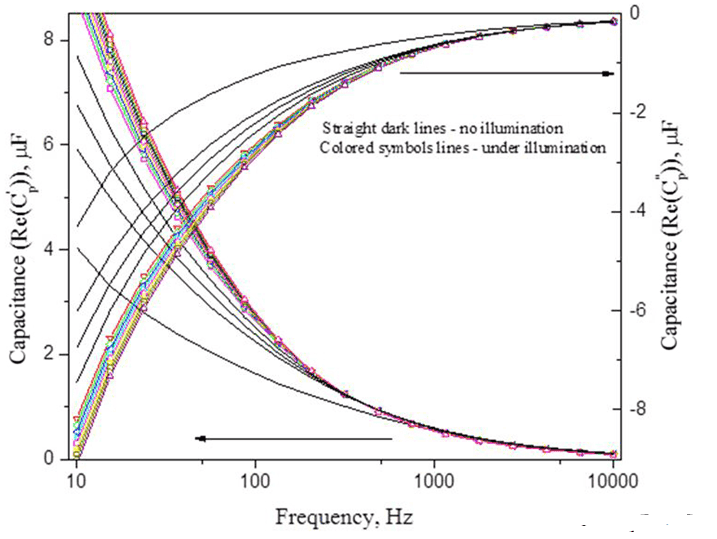

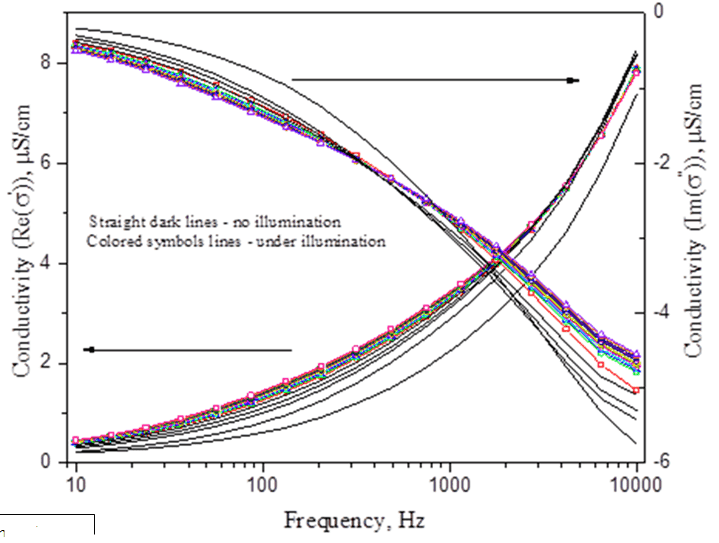

I have been doing research with a certain biological substance and its capacitance and conductivity. The following graphs are from a computer connected to a BDS (broadband dielectric spectrometer):
cpacitance 1.PNG

conuctivity 1.PNG


I understand the fundamental units, but Re(C'), Re(C''), Re(σ'), lm(σ'') do not make sense to me. How can capacitance be negative in one of the graphs? Why is there no difference between both axis in terms of fundamental units? Is it possible that the units are wrong? I have been looking at all the texts I have, but none of them are able to help.

Physics news on Phys.org
  • #2
Looks like a labelling error in the graph creation. Notice that the two Y axes are the same units.
