Hex Meshing Error: Do I Need to Partition the Part?

Thread starter ookt2c
Start date Apr 28, 2013
Tags

Error Meshing Partition

In summary, Hex Meshing Error refers to the failure of a computer program to generate a hexahedral mesh for a given 3D model. This can occur due to geometric complexity, incorrect settings, or unsuitable meshing algorithms. While partitioning can help simplify the geometry, it is not always necessary. Other ways to avoid Hex Meshing Error include using different meshing algorithms, adjusting mesh settings, simplifying the geometry, and using specialized software. To fix Hex Meshing Error, it is important to identify the specific cause and take appropriate steps such as simplifying the geometry or adjusting parameters.

Apr 28, 2013

ookt2c

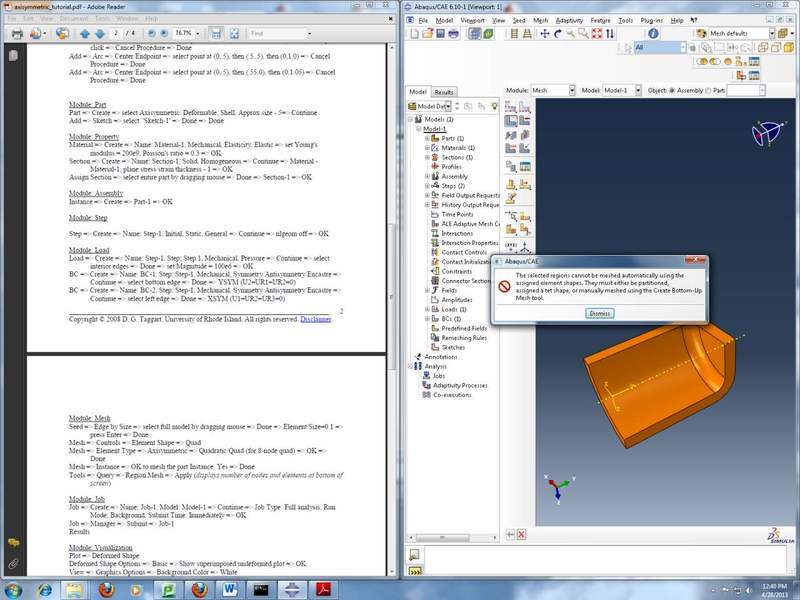

I am attempting to mesh this part using "hex" elements but I always receive an error. Am I supposed to partition the part? If so how do I do that?

Thanks for you help

P.S. I attached related documents to this post

Engineering news on Phys.org

May 19, 2013

windsim

i think you should divide the model into three simpler parts so that the programe can mesh with Hex automatically.
