How Do You Calculate Forces in a Truss System?

In summary, the problem is to determine the forces in members AC, BC, BD, CD, and GF of a truss and indicate whether they are in tension or compression. The person asking for confirmation of their answers is advised to show their work so that assistance can be provided if needed. It is mentioned that the problem is statically determinate and solving it joint by joint will result in a final check. The first step is to obtain the reaction components.
  • #1
genelle
2
0
Please answer the following problem. You can post the answers here, I just want to confirm if my answers are correct. This is a truss analysis problem.


Problem:

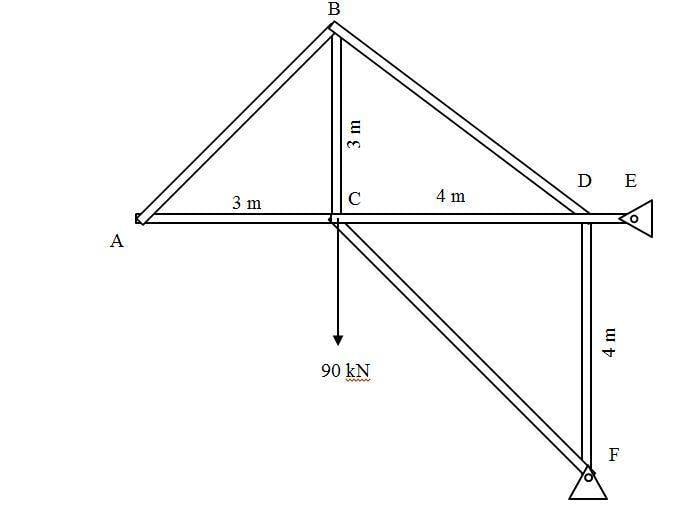

Determine the forces in members AC, BC, BD, CD and GF for the truss shown in the figure. Indicate if the member is tension or compression. (F and E are pins)



Attachments

  • Capture.JPG
    16.9 KB · Views: 490
Physics news on Phys.org
  • #2
It is best for you to show your answers and how you arrived at those answers, so we can better assist if indeed assistance is necessary. As a general rule, we don't give out answers.

  • #3
This is a statically determinate problem. If you solve it, joint by joint, then the last joint will be a check. You don't then need us to check it. Start by getting the reaction components.
