How Do You Solve for i(t) in a Series RLC Circuit with a Given Source?

In summary, the conversation involves solving for the current (i(t)) in a circuit using the KCL equation. The natural response (in(t)) is found through the derivation and is equal to A1+A2.e-5t. The initial conditions (i(0+)=i(0-)=0) are then used to find the final solution, i(t)=in+ip. However, the initial conditions are incorrect and must include the input variable, Vs, to solve accurately.
  • #1
ongxom
26
0

Homework Statement

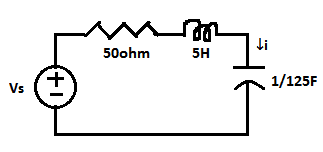

R=50Ω
L=5H
C=1/125F
vs=200.[1+u(t)] V

Find i(t)

Homework Equations



The Attempt at a Solution


Write the KCL equation
-vs+Ri+L.i'+1/C.∫idt=0
Do the derivation to get rid of the integral, replace all possibly values, we got:
i''+10i'+25i=1/5.vs' (*)
solve A(s)=s2+10s+25=0, we got the natural response in(t)=A1+A2.e-5t

Replace the inductor with a short circuit, the capacitor with open circuit, so I have ip=0
and the initial condition i(0+)=i(0-)=0. (**)

So the solution should be i(t)=in+ip

I thought I was wrong at (**) and maybe at (*) cause the vs' would be zero and the solution would be zero as well.

Physics news on Phys.org
  • #2
ongxom said:
1. Replace the inductor with a short circuit, the capacitor with open circuit, so I have ip=0
and the initial condition i(0+)=i(0-)=0. (**)

So the solution should be i(t)=in+ip

I thought I was wrong at (**) and maybe at (*) cause the vs' would be zero and the solution would be zero as well.


i(0+) = i(0-) ≠ 0. Look at the definition of the input. What does vs=200.[1+u(t)] V mean?

  • #3
ongxom said:
i''+10i'+25i=1/5.vs' (*)
solve A(s)=s2+10s+25=0, we got the natural response in(t)=A1+A2.e-5t

Replace the inductor with a short circuit, the capacitor with open circuit, so I have ip=0
and the initial condition i(0+)=i(0-)=0. (**)

So the solution should be i(t)=in+ip

I thought I was wrong at (**) and maybe at (*) cause the vs' would be zero and the solution would be zero as well.


Even if Vs = u(t) the current i(t) would not be zero! You are ignoring Vs!
You have to include Vs before trying to fit the initial conditions. Since this is a 2nd order ODE you know there have to be two initial conditions on i.
