How to Connect a Signal Generator to Multiple Components?

In summary, the conversation discusses the connection of a signal generator to a capacitor on a prototype breadboard. The question is raised about the connection to a 3R3 resistor and DC supply, and the possibility of using a special wire or T-junction at the output port of the signal generator. The conversation also mentions a previous thread with a similar circuit and the possibility of merging the two threads.
  • #1
taleebe
11
0

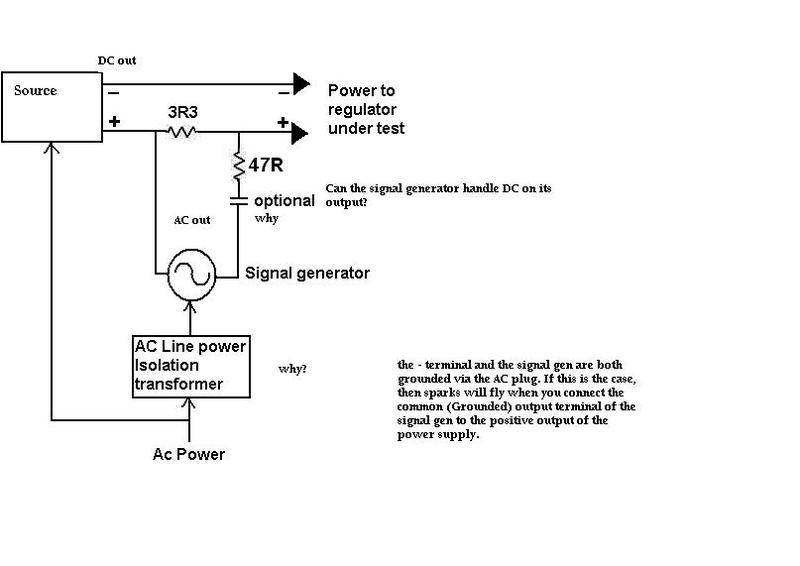

I'm trying to connect a signal generator as in the following configuration, my signal generator has an output port that i can connect to the capacitor in the diagram on a prorotype breadboard but what about the connection to the 3R3 resistor and DC supply? is there a special wire that goes from the signal generator output, splits into two that i can connect? or perhaps some kind of T-junction at the output port of the signal generator?


Attachments

  • pop-pop.JPG
    25.6 KB · Views: 392
Engineering news on Phys.org
  • #2
This is very similar to your other thread here with the same circuit, taleebe. Do you want me to merge the two threads? Or are you asking something significantly different here?

  • #3
A merge would be ideal,thank you


FAQ: How to Connect a Signal Generator to Multiple Components?

How do I connect a signal generator to my circuit?

To connect a signal generator to your circuit, you will need to use a BNC cable. One end of the BNC cable will connect to the output port on the signal generator, and the other end will connect to the input port on your circuit.

What type of signal generator should I use?

The type of signal generator you should use depends on the type of signal you need to generate. Some common types include function generators, arbitrary waveform generators, and pulse generators. It is important to choose a signal generator that can produce the specific type of signal you need for your experiment or project.

Can I use a signal generator to test my circuit's frequency response?

Yes, signal generators are commonly used to test frequency response in circuits. You can use the signal generator to produce a signal of a specific frequency and then measure the output response of your circuit to determine its frequency response.

How do I adjust the amplitude of the signal from the generator?

Most signal generators have a knob or button that allows you to adjust the amplitude of the signal. Some may also have a digital display that shows the current amplitude. You can use this control to increase or decrease the amplitude of the signal as needed.

Can I use a signal generator to generate multiple signals at once?

Some signal generators have the capability to produce multiple signals simultaneously. This can be useful for testing circuits that require multiple input signals. However, not all signal generators have this capability, so it is important to check the specifications of the specific model you are using.
