Summary:: I am learning particle-in-cell (PIC) python 3X code. PIC currently represents one of the most important plasma simulation tools. It is particularly suited to the study of kinetic or non-Maxwellian effects.

I am learning particle-in-cell (PIC) python code. PIC currently represents one of the most important plasma simulation tools. It is particularly suited to the study of kinetic or non-Maxwellian effects.

Given the following dispersion relation

$$\epsilon (k, \omega) = 1 - \frac 1 2 \left[ \frac{\omega_p^2}{(\omega-kv_0)^2} + \frac{\omega_p^2}{(\omega+kv_0)^2}\right]$$

I found the range of wave numbers $k$ for which the oscillation frequency is imaginary to be ##-\left|\frac{w}{v_0}\right| \lt k \lt \left|\frac{w}{v_0}\right|##

What I am trying to understand is how to find the minimum grid length ##L_{min}## as a function of ##\frac{v_0}{w}##. ##L_{min}## indicates the needed minimum grid length to support such unstable modes.

I think we should be able to study the plasma behaviour for both ##L < L_{min}## and ##L > L_{min}##. I was told I should adjust the number of simulation particles to grid points to improve the statistics. Besides, the number of particles per cell (i.e. npart/ngrid) should be fixed and should be much greater than 1, in order to reduce numerical noise. The runtime needed (here in units of ##\omega_p^−1##) to observe the instability can be estimated from the maximum growth rate.

Here's the full python 3 code I am working with. Please note I have little experience with coding so I might ask lots of follow up questions.

Python:
#! /usr/bin/python
    #
    #  Python script for computing and plotting single charged particle
    #  trajectories in prescribed electric and magnetic fields.
    #  Roughly equivalent to boris.m MATLAB program

    import matplotlib.pyplot as plt
    import numpy as np
    from matplotlib.widgets import Slider, Button, RadioButtons
    from mpl_toolkits.mplot3d import Axes3D
    import os
    import os.path
    import sys
    from sys import exit
    from time import sleep

    # ===================================
    #
    # Function to integrate particle trajectory
    # in given E, B fields
    #
    # ===================================

    def integrate(E0, B0, vz0):
       global dt, v0, x0, xp, yp, zp, qom, larmor, nsteps
       wc=qom*B0 # cyclotron frequency
       larmor=vperp/wc
       print ("Cyclotron frequency =",wc)
       print ("Perpendicular velocity v_p=",vperp)
       print ("Larmor radius=",larmor)

       norm = 1.  # choose whether to normalise plot axes dimensions to Larmor radius
       trun=5*2*np.pi/wc  # total runtime
       dt=.1/wc  # timestep - adjust to current B-field

       nsteps=int(trun/dt)  # timesteps
       E=np.array([0.,E0,0.])  # initial E-field
       B=np.array([0.,0.,B0])  # initial B-field
       u=np.array([0.,0.,0.])  # intermediate velocity
       h=np.array([0.,0.,0.])  # normalized B-field
       xp[0]=x0[0]
       yp[0]=x0[1]
       zp[0]=x0[2]
       v0[2]=vz0 # z-component

       v=v0+.5*dt*qom*(E+np.cross(v0,B)) # shift initial velocity back 1/2 step
       x=x0

       for itime in range(1,nsteps):
         x=x+dt*v
         xp[itime]=x[0] /norm
         yp[itime]=x[1] /norm
         zp[itime]=x[2] /norm
         tp[itime]=itime*dt
    #
    # Boris mover: solves dv/dt = q/m*(E + vxB) to 2nd order accuracy in dt
    #
         qomdt2 = dt*qom/2
         h = qomdt2*B
         s=2*h/(1+np.dot(h,h))
         u = v + qomdt2*E
         up=u+np.cross(u+np.cross(u,h),s)
         v=up+qomdt2*E

    #     vxp[itime] = v[0]


    # ===================================

    # Make 2D plots of particle orbit
    #
    # ===================================

    def plot_track2D():
      global xp,yp,nsteps,ax1

      fig = plt.figure(figsize=(8,8)) # initialize plot
      xmin=np.min(xp)
      xmax=np.max(xp)
      ymin=np.min(yp)
      ymax=np.max(yp)
      fig.add_subplot(221) # 1st subplot in 2x2 arrangement
      plt.cla()
      plt.grid(True, which='both')
      plt.xlim( (xmin, xmax) )
      plt.ylim( (ymin, ymax) )
      plt.xlabel('$x$')
      plt.ylabel('$y$')
      plt.plot(xp[0:nsteps],yp[0:nsteps],c='b')

      fig.add_subplot(222) # 2nd subplot

    #  fig.add_subplot(223) # 2nd subplot
    #  fig.add_subplot(224) # 2nd subplot

      plt.draw()
      plt.savefig('./particle_orbit.png') # Save plot to file

    # ===================================
    #
    # Make 3D plot of particle orbit
    #
    # ===================================

    def plot_track3D():
      global xp,yp,zp,nsteps,ax1
      xmin=np.min(xp)
      xmax=np.max(xp)
      ymin=np.min(yp)
      ymax=np.max(yp)
      zmin=np.min(zp)
      zmax=np.max(zp)
      ax1.cla()

      plt.ion()
      plt.grid(True, which='both')
      ax1.set_xlim( (xmin, xmax) )
      ax1.set_ylim( (ymin, ymax) )
      ax1.set_zlim( (zmin, zmax) )
      ax1.set_xlabel('$x $ [m]')
      ax1.set_ylabel('$y $ [m]')
      ax1.set_zlabel('$z $ [m]')
    #ax1.set_aspect(1.)
      ax1.scatter(xp,yp,zp,c=tp,marker='o') # tracks coloured by elapsed time since start
      plt.draw()

    # =============================================
    #
    #  Main program
    #
    # =============================================

    print ("Charged particle orbit solver")
    plotboxsize   = 8.
    animated = True    x0=np.array([0.,0.,0.])     # initial coords
    vz0=0.
    v0=np.array([-1e2,0.,vz0]) # initial velocity
    vperp = np.sqrt(v0[0]**2+v0[2]**2)
    E0=0.
    B0=.1

    e=1.602176e-19 # electron charge
    m=9.109e-31 # electron mass
    qom=e/m  # charge/mass ratio

    wc=qom*B0 # cyclotron frequency
    larmor=vperp/wc
    print (wc,vperp,larmor)

    trun=5*2*np.pi/wc  # total runtime
    dt=.1/wc  # timestep - adjust to current B-field

    nsteps=int(trun/dt)  # timesteps
    B1=np.array([0.,0.,0.1])  # gradient B perturbation

    #wc=qom*np.linalg.norm(B) # cyclotron frequency

    #nsteps=2
    tp = np.zeros(nsteps)  # variables to store particle tracks
    xp = np.zeros(nsteps)
    yp = np.zeros(nsteps)
    zp = np.zeros(nsteps)
    vxp = np.zeros(nsteps)
    vyp = np.zeros(nsteps)
    vzp = np.zeros(nsteps)

    # Compute orbit
    integrate(E0, B0, vz0)

    # 2D orbit plotter
    plot_track2D()

    exit(0) # Quit script before 3D plot - comment out to continue!

    # Start 3D interactive mode with sliders for B, E and v0

    plt.ion() # Turn on interactive plot display
    fig = plt.figure(figsize=(8,8))
    # Get instance of Axis3D
    ax1 = fig.add_subplot(111, projection='3d')

    # Get current rotation angle
    print (ax1.azim)

    # Set initial view to x-y plane
    ax1.view_init(elev=90,azim=0)
    ax1.set_xlabel('$x $[microns]')
    ax1.set_ylabel('$y $[microns]')
    ax1.set_zlabel('$z $[microns]')
    plot_track3D()

    #filename = 'a0_45/parts_p0000.%0*d'%(6, ts)
    #plot_from_file(filename):
    axcolor = 'lightgoldenrodyellow'
    axe0 = fig.add_axes([0.1, 0.95, 0.3, 0.03])#, facecolor=axcolor) # box position, color & size
    axb0  = fig.add_axes([0.5, 0.95, 0.3, 0.03])#, facecolor=axcolor)
    axv0  = fig.add_axes([0.1, 0.9, 0.3, 0.03])#, facecolor=axcolor)

    sefield = Slider(axe0, 'Ey [V/m]', -5.0,5.0, valinit=E0)
    sbfield = Slider(axb0, 'Bz [T]', -1.0, 1.0, valinit=B0)
    svz = Slider(axv0, 'vz [m/s]', 0.0, 1.0, valinit=0.)

    def update(val):
        E0 = sefield.val
        B0 = sbfield.val
        vz0 = svz.val

        integrate(E0,B0,vz0)
        plot_track3D()
        plt.draw()

    sefield.on_changed(update)
    sbfield.on_changed(update)
    svz.on_changed(update)


    resetax = fig.add_axes([0.8, 0.025, 0.1, 0.04])
    button = Button(resetax, 'Reset', color=axcolor, hovercolor='0.975')
    def reset(event):
        global ax1
        sefield.reset()
        sbfield.reset()
        svz.reset()
        ax1.cla()
        ax1.set_xlabel('$x $[microns]')
        ax1.set_ylabel('$y $[microns]')
        ax1.set_xlim( (0., 10.) )
    #    ax1.set_ylim( (-sigma, sigma) )
        ax1.grid(True, which='both')
        plt.draw()
    button.on_clicked(reset)


    #plt.show()
    plt.show(block=False)
Thank you! :biggrin:

Last edited by a moderator:
Physics news on Phys.org
  • #2
But that code is nothing to do with plasma simulation it is a
JD_PM said:
Python:
 #  Python script for computing and plotting single charged particle
 #  trajectories in prescribed electric and magnetic fields.
It doesn't use particle-in-cell or any other mesh algorithm, it appears to use a leap-frog integrator for the ODEs for a single particle.

  • #3
Hi pbuk.

pbuk said:
It doesn't use particle-in-cell or any other mesh algorithm, it appears to use a leap-frog integrator for the ODEs for a single particle.

Honestly, I do not have the knowledge to argue that back.

Let me summarize my question, given that it might be uncomfortable to be presented with such a long post.

I am interested in finding the minimum grid length ##L_{min}## needed to support unstable modes. To do so the code should be checked in order to understand the plasma behavior either side of ##L_{min}## threshold, ie ##L_{min} < L## and ##L < L_{min}##.

I am given the following hints

  • Adjust the number of simulation particles to grid points to improve the statistics.
  • Fix the number of particles per cell (i.e. npart/ngrid) and keep it ##>> 1##, in order to reduce numerical noise.
  • The runtime needed to observe the instability can be estimated from the maximum growth rate.
If you guys could guide me through I would really appreciate it :smile:

You might point out I should deal with some issues first, such as where we expect an instability to occur given the dispersion relation (in other words, finding the range of wave numbers ##k## for which the oscillation frequency is imaginary). If you need me to address that first let me know and I will deal with such smaller question in a different forum :)

  • #4
Where in the code you posted do you enter ## L ##?

  • Like
Likes JD_PM
  • #5
pbuk said:
Where in the code you posted do you enter ## L ##?

A general grid length ##L## is not introduced. I guess we have to do so in the "main program", but I am stuck in how to proceed.

JD_PM said:
I am given the following hints

  • Adjust the number of simulation particles to grid points to improve the statistics.
  • Fix the number of particles per cell (i.e. npart/ngrid) and keep it ##>> 1##, in order to reduce numerical noise.
  • The runtime needed to observe the instability can be estimated from the maximum growth rate.
I do not see how the hints can help.

Here's a summary of what the code contains at the moment:
  • A function to integrate particle trajectory in given ##E, B## fields.
  • A Lorentz force law solver up to 2nd order accuracy in dt.
  • How to make 2D plots of particle orbit.
  • How to make 3D plot of particle orbit.
  • "Main program"

  • #6

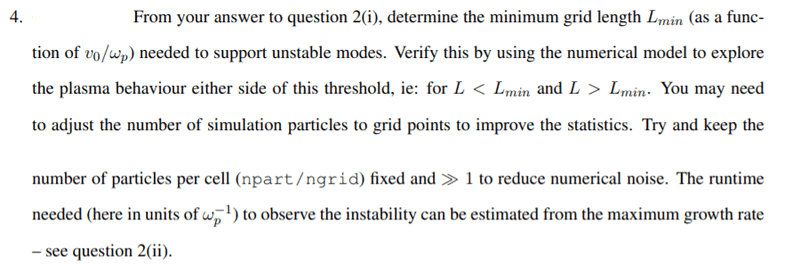

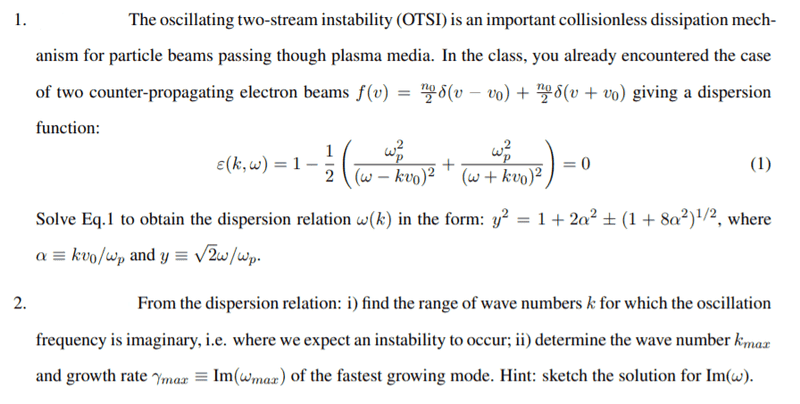

Let me share the original statement



So question 2 should be solved first; let me share that question's statement too (together with 1's, given that 1 and 2 are related)



I have been dealing with question 2 for days and this is what I got.

If you see it is really unavoidable to properly solve 2. first let me know and I will ask it in PF this time :smile:

  • #7
JD_PM said:
I have been dealing with question 2 for days.
Then you have been wasting your time, as well as that of stackexchange members.

Didn't you notice the ## = 0 ## at the end of ref ## (1) ##, or did you think it was unimportant? And in any case why are you trying to use the dispersion function ## \varepsilon (k, \omega) = 0 ## given in question 1 to find unstable values of ## k ##? Question 2 states that you should be using the dispersion relation derived as the answer in question 1.

  • #8
OK, we are dealing with #2 here.

pbuk said:
And in any case why are you trying to use the dispersion function ## \varepsilon (k, \omega) = 0 ## given in question 1 to find unstable values of ## k ##? Question 2 states that you should be using the dispersion relation derived as the answer in question 1.

You are right, thanks for pointing it out! I used the dispersion relation (as can be checked in the other thread) and obtained the following range

$$-\left| \frac{\omega_p}{v_0}\right| < k < \left| \frac{\omega_p}{v_0}\right|$$

The corresponding range for ##\alpha## is ##-1 < \alpha < 1##.

We want to relate the wave number ##k## to a (minimum grid) length. We know that the wavelength ##\lambda## relates to the wave number ##k##

$$\lambda = \frac{2 \pi}{k}$$

So assuming that with "grid length" they meant "wavelength associated to the wave number ##k##", then the minimum grid length should be

$$L_{min} > 2 \pi \left| \frac{v_0}{\omega_p}\right|$$

So that we can actually see the grid.

OK but now the question is how to implement this into the code.
