How to represent this statement in a diagram?

In summary, the conversation was about the representation of two forces with magnitudes of 3N and 5N and an angle of 60 degrees between them. The first diagram did not have arrowheads, causing confusion about the direction of the forces. The speaker then made changes to the diagrams, but it was pointed out that the top diagram was incorrect as it showed an angle of 120 degrees instead of 60 degrees. The person responsible for the diagrams admitted their mistake and it was concluded that the bottom diagram was correct. The conversation ended with the agreement to explain the mistake to the person responsible for the diagrams.
  • #1
Benjamin_harsh
211
5
Homework Statement
How to represent this statement in a diagram?
Relevant Equations
How to represent this statement in a diagram?

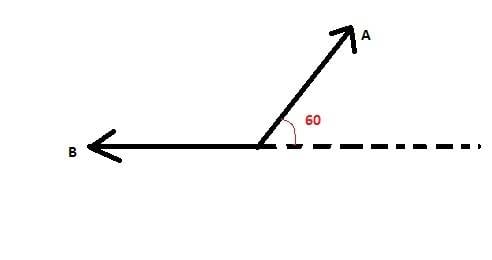

Statement: My friend represented this sentence "Two forces have magnitude of 3N and 5N, and have an angle of 60 between them" into this diagram:

243220

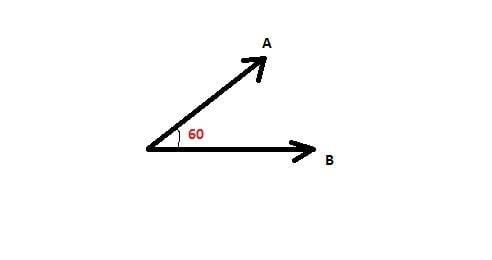

But why didn't he represent like this?:
243221

Last edited:
Physics news on Phys.org
  • #2
Hi,

You can't tell until you add arrowheads. If A and B both point to the left in the first diagram (or both to the right), the angle is indeed 60 degrees.
And if e.g. A points to the left and B to the right, then the smallest angle to rotate A to make it align with B is 120 degrees.

  • #3
BvU said:
Hi, You can't ...rees.

See, I made changes to my diagrams.

  • #4
Yes, now my #2 post looks weird...

Never mind. The smallest angle you can rotate over to make them align and pointing in the same direction is 120 degrees in the top picture and 60 in the lower.

  • #5
BvU said:
smallest angle you can rotate over to make them align and pointing in the same direction is 120 degrees in the top picture and 60 in the lower.

So both diagrams are fits the context ?

  • #6
No. In the top diagram the angle between the two vectors is 120 degrees, not 60.

  • #7
BvU said:
In the top diagram the angle between the two vectors is 120 degrees, not 60.
Are you saying second diagram is correct ?

  • #8
What I say isn't important; what you understand is

In the bottom diagram the angle between the two vectors is 60 degrees

  • #9
Benjamin_harsh said:
But why didn't he represent like this?
The short answer is: Because he was wrong.

  • #10
Orodruin said:
The short answer is: Because he was wrong.

Thank you :check:

  • #11
@Benjamin_harsh : it it clear to you now, and can you explain (e.g to your friend) why he was wrong ?

  • #12
BvU said:
@Benjamin_harsh : it it clear to you now, and can you explain (e.g to your friend) why he was wrong ?
YES, I will explain to him.
