Imaging Fossil Thin Sections: A Journey into Microscopic Worlds

  • Thread starter Andy Resnick
  • Start date
  • Tags
    Imaging
In summary: I guess I just hold it still and take the picture!In summary, @davenn has been doing a great job of photographing thin sections for me, and I'm excited to see what he comes up with next.
  • #1
Andy Resnick
Science Advisor
Education Advisor
Insights Author
7,540
3,369
TL;DR Summary
Post your petrographic images!
Sometimes I win at eBay:

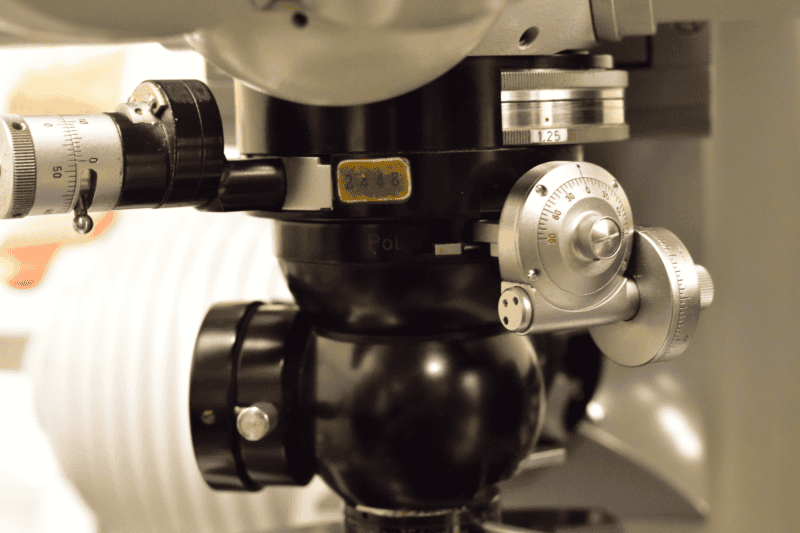

On the right is a Ehringhaus quartz compensator in perfect condition- I believe the seller didn't know what they had, I got it for $200. Now I need to learn how to use it :)

It seems that whatever I decide to learn how to photograph, @davenn has been there already. With his encouragement, I am getting some thin sections fabricated, hopefully I'll have them by this summer. In the meantime, I scored a set of fossil thin sections (at about $5 per section), my suspicion is that they were made by a (grad?) student as part of a course.

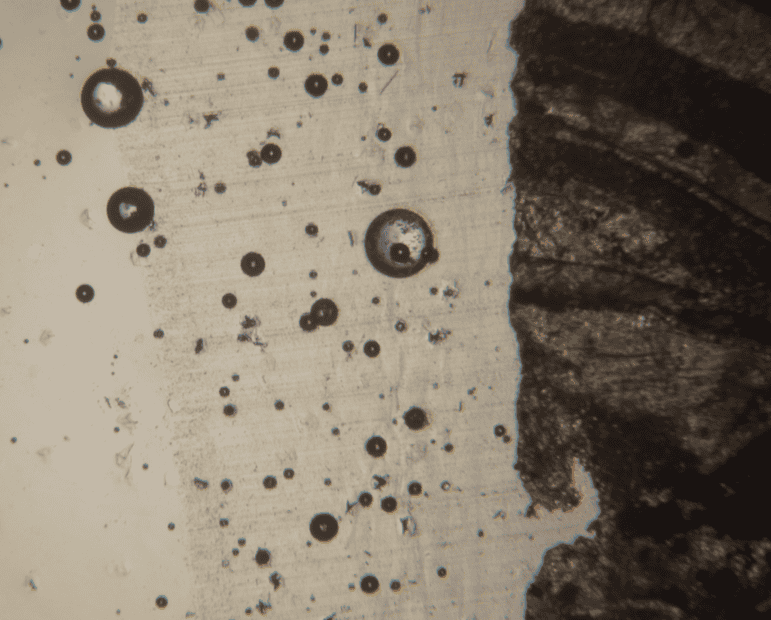

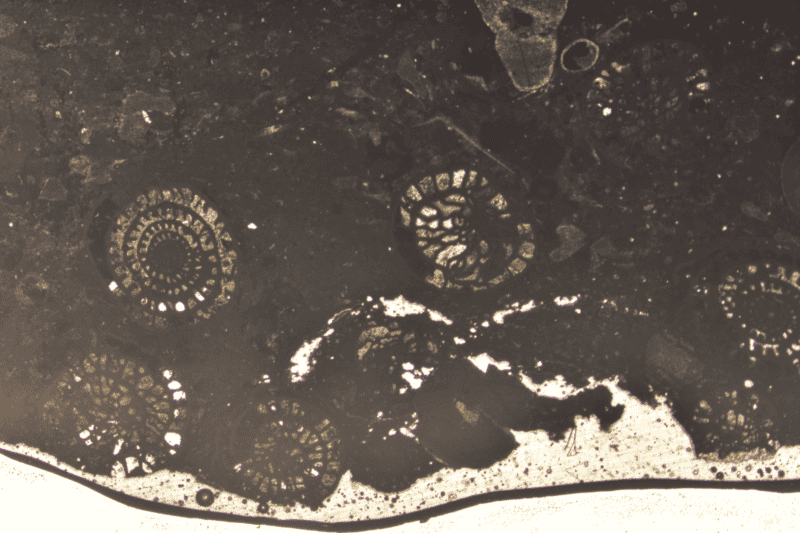

Here's a macro-view, taken with a zoom Luminar, of a sample from the Graford Formation (Upper Pennsylvanian) show some fossils in cross-section:

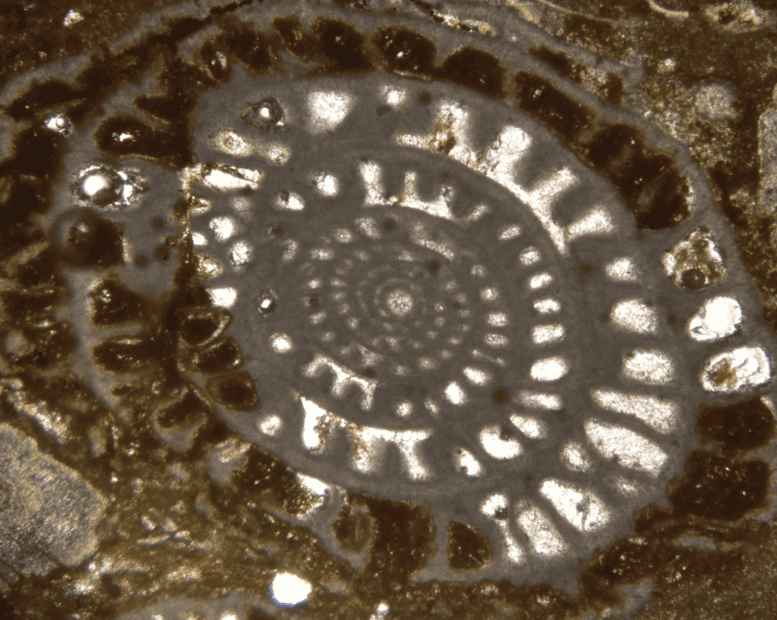

And a closer view at 4X:

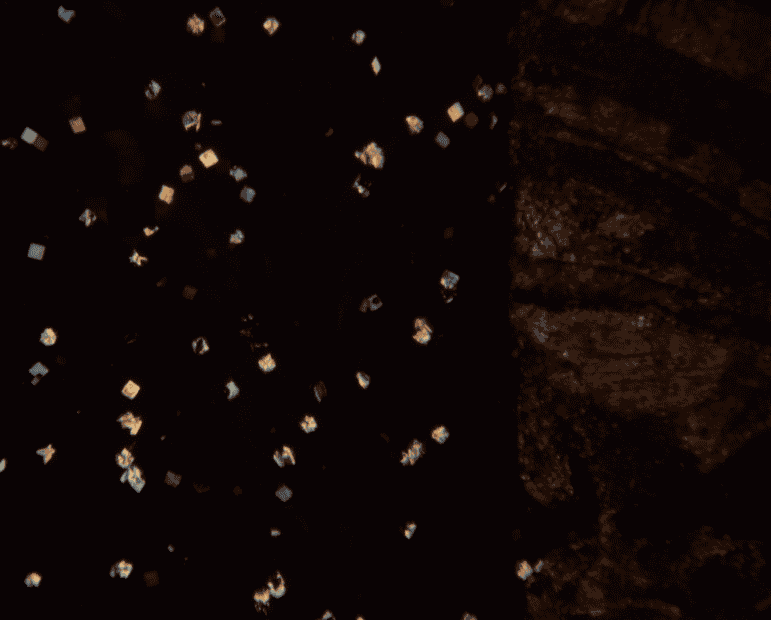

One thing I don't understand are the presence of small flakes of "something", I think part of the sample prep- these are uncovered and non polished sections. The flakes are uniform size, square, and highly birefringent. Two views, one with parallel polarizers and the other with crossed polars:





continued....

  • Like
  • Wow
  • Love
Likes pinball1970, davenn, Astronuc and 1 other person
Earth sciences news on Phys.org
  • #2

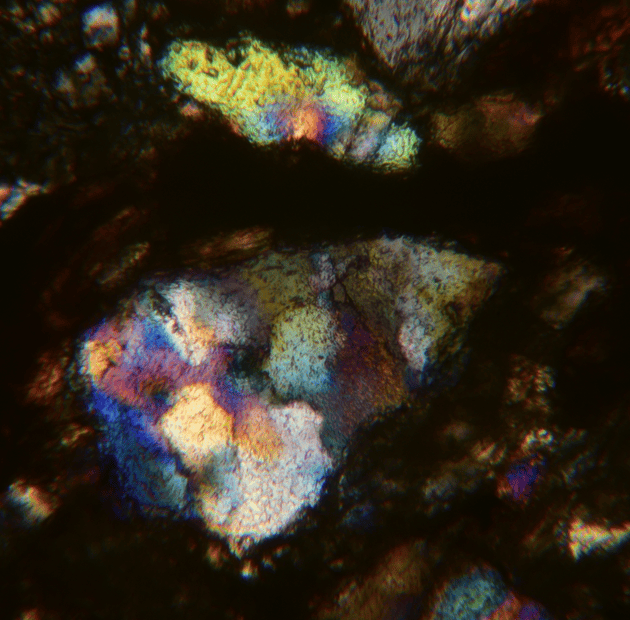

The next sample I worked with is from the Dneister Formation (Devonian)- here's when I start to move beyond 'hey, cool pics!'. Here are a couple grains of something, in two different rotation orientations with respect to the crossed polars at 16X:




The colors of one grain changes, but not the other....

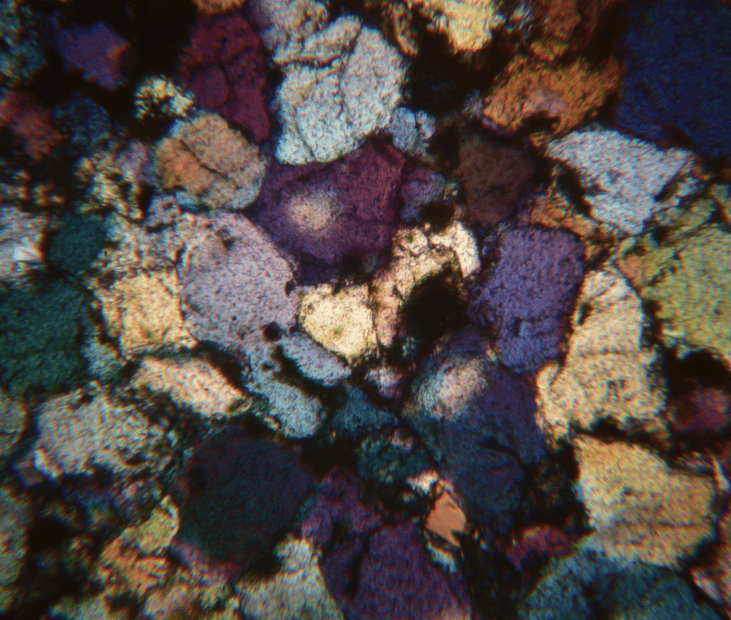

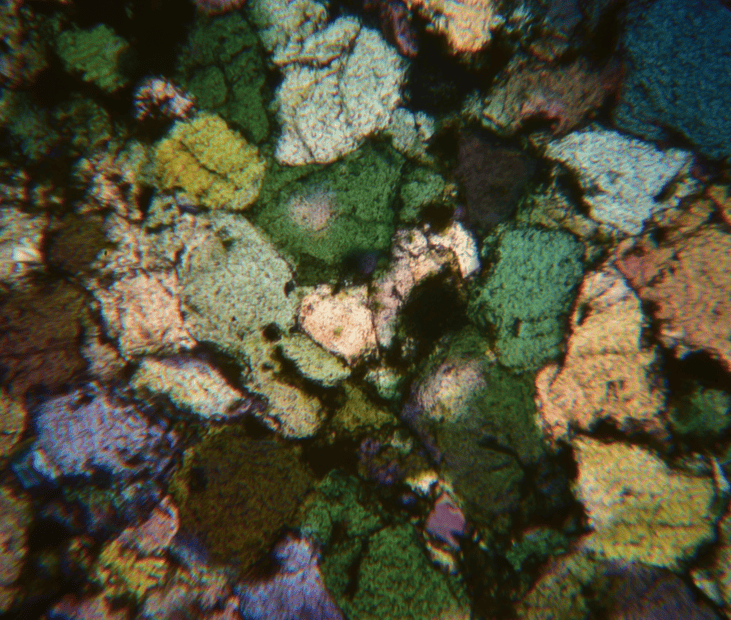

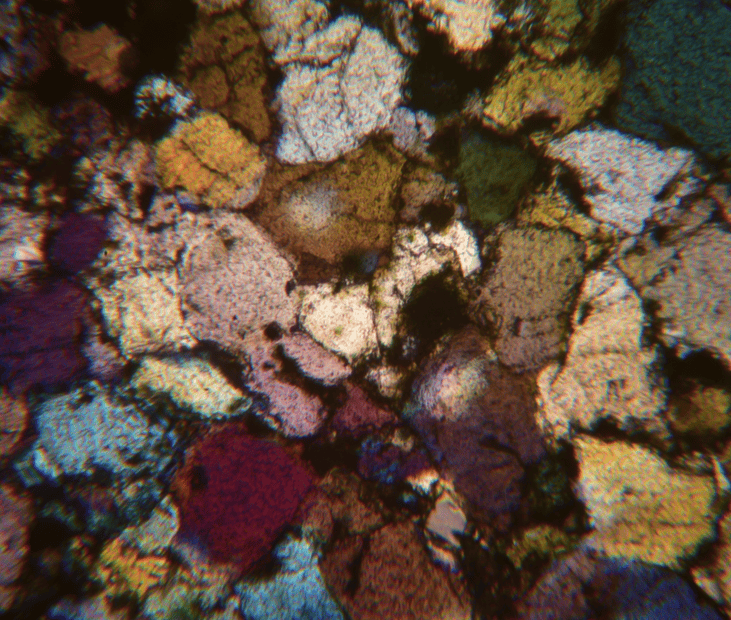

And using the compensator on a cemented sandstone sample from the Crigglestone Rock Formation (Carboniferous) gives the following sequence as the compensator retardation changes from 0 to (I think) +1λ, based on a rotation angle of 30 degrees:








Not sure what these minerals are... any guesses?

I tried to get some interference figures, but nothing was 'clean' enough.


Attachments

  • 1681934185181.png
    311.2 KB · Views: 106
  • 1681934346450.png
    332.7 KB · Views: 135
  • Like
  • Love
Likes Rive, davenn, Astronuc and 5 others
  • #3
Andy Resnick said:
One thing I don't understand are the presence of small flakes of "something", I think part of the sample prep- these are uncovered and non polished sections.
Maybe cubes of crystal grit, (embedded in the Canada balsam cement which has the same RI as the glass slide).

  • #4
Harzburgite xenolith, from Dutoitspan, Kimberley RSA, crossed polars and 100mm Luminar:


  • Like
Likes Rive, davenn and Astronuc
  • #5
Agate, crossed polarizers, 100mm Luminar:


  • Like
  • Wow
Likes Rive, davenn, jim mcnamara and 2 others
  • #6
I remember the 1970s, when petrology could always be bright and colourful, no need for hallucinogenics then. At the time, I felt the rocks knew more about me, than I did of them. Handheld XRF has ruined that game.

  • Like
Likes Andy Resnick
  • #7
Andy Resnick said:
The next sample I worked with is from the Dneister Formation (Devonian)- here's when I start to move beyond 'hey, cool pics!'. Here are a couple grains of something, in two different rotation orientations with respect to the crossed polars at 16X:Not sure what these minerals are... any guesses?

I tried to get some interference figures, but nothing was 'clean' enough.
As far as I understand it, these sections are fossiliferous. These sections are usually thicker than petrographic sections, which makes identification of the mineral content far more difficult.
You should try to determine the thickness of your sample. To this end, use a rather highly magnifying objective (40 or 50) and focus on the upper and lower side of your sample. The fine drive should be gauged in mum on your microscope. Take the difference and multiply by the approximate index of refraction of your sample (usually 1.5). You can then determine the maximal interference colours from a Michel Levy chart (https://www.researchgate.net/publication/242341440_extended_chart).
Are these slides covered? Petrographic analysis requires the slides to be grinded (but not polished) and covered, to be able to judge e.g. the "chagrin", which allows for estimation of the index of refraction.

  • #8
Andy, maybe you want to describe your setup more in detail. I would be very interested. These luminars are rather for macrophotography than for microscopy. How did you adapt them to your mic?

  • #9

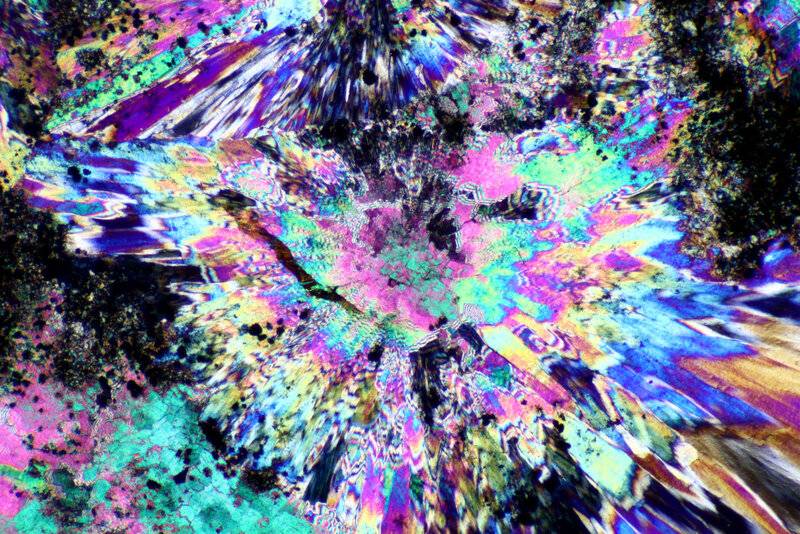

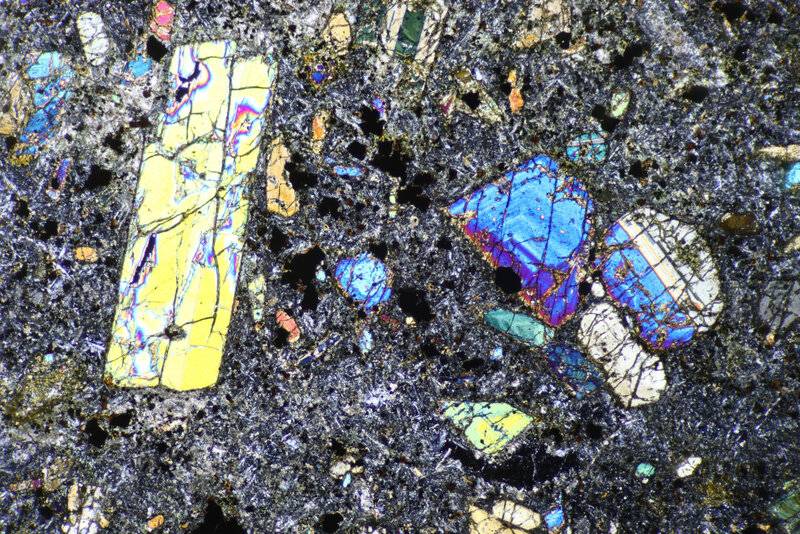

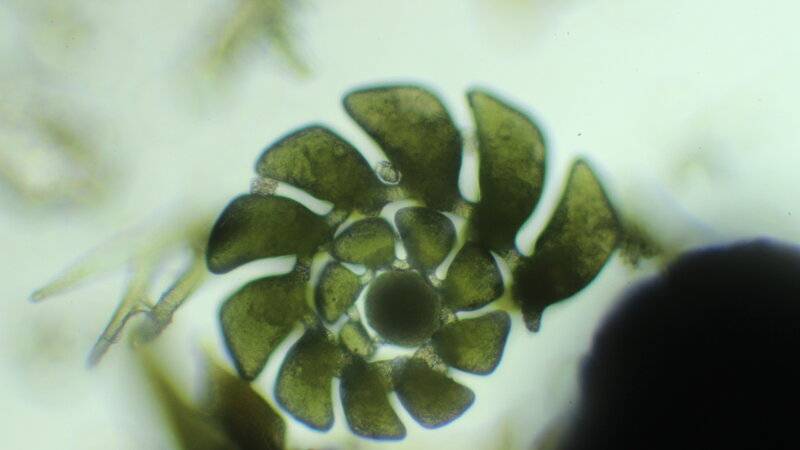

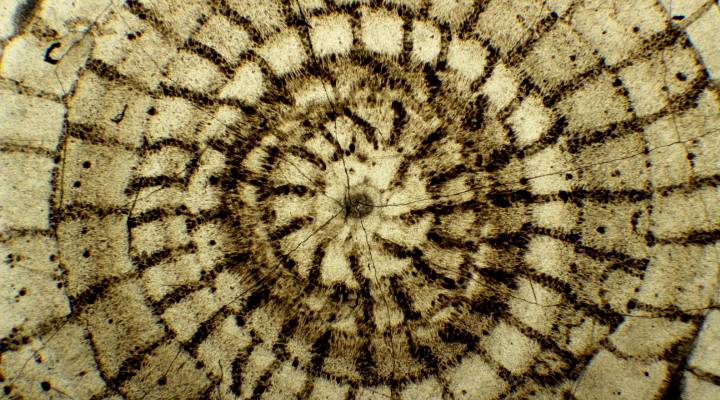

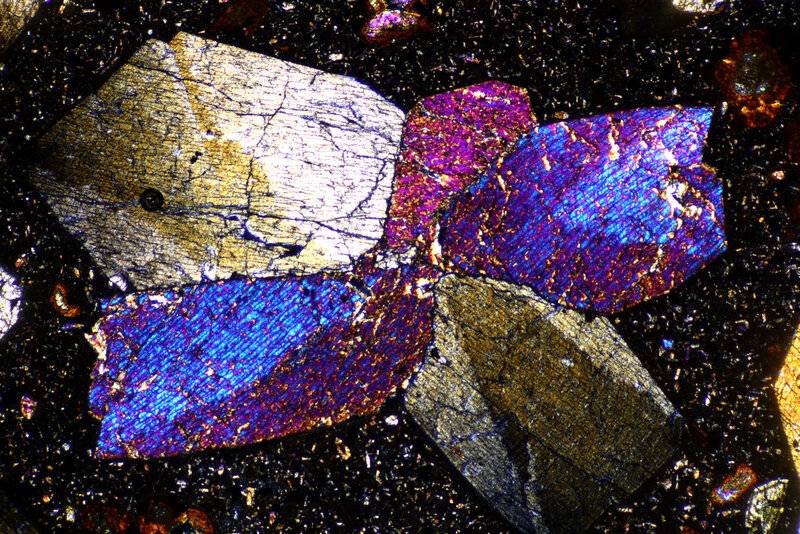

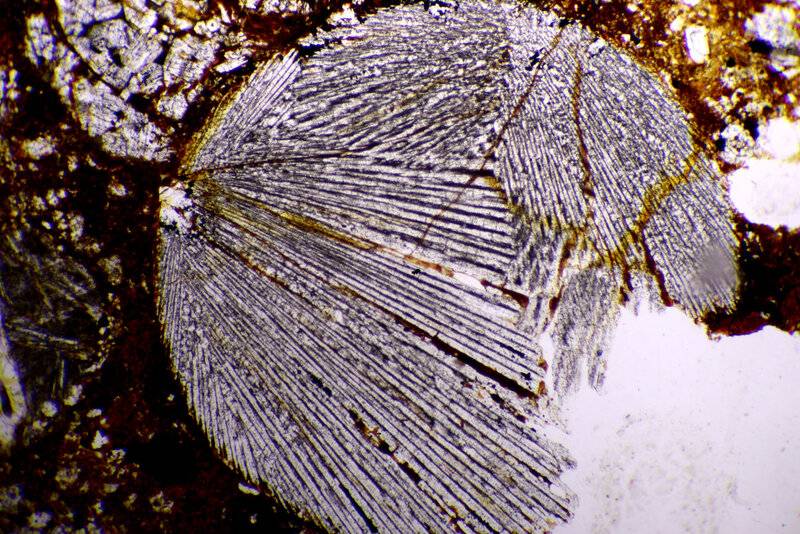

Here some pictures:
1. Prehnite, Norway
2. Essexite, Kaiserstuhl Volcanoe, Germany
3. Nummulith, Bad Adelholzen, Germany
4. Nummulith, Glauconitic filling after treatment with HCl. Bad Adelholzen
5. Limburgite, Limberg, Germany
6. Chondrite, North Africa

I just realized that the photos are not always shown in the same order. So consider this to be a quiz!


Attachments

  • IMG_5428.JPG
    123.6 KB · Views: 89
  • IMG_5551.JPG
    137.1 KB · Views: 93
  • Nummulit1.JPG
    26.3 KB · Views: 107
  • IMG_5056.JPG
    75 KB · Views: 84
  • IMG_5590.JPG
    153 KB · Views: 91
  • IMG_5744.JPG
    129.8 KB · Views: 96
Last edited:
  • Like
  • Wow
Likes pinball1970 and Rive
  • #10
DrDu said:
Andy, maybe you want to describe your setup more in detail. I would be very interested. These luminars are rather for macrophotography than for microscopy. How did you adapt them to your mic?
Very lo-tech. I'm using my Ultraphot in 'macro mode'... there don't seem to be any pics I can grab online to show.... here's a couple of images using a 'dummy camera':



One polarizer (small, about 40mm diameter) sits below the illuminator, there's a shallow well that can accommodate it. The analyzer is a 6" x 6" sheet of polaroid, placed directly in front of the camera (no lens on the camera)- in the images above, you can see reflections off that polaroid sheet. I first orient the polars by rotating the lower polarizer until extinction is achieved, I can't really rotate the analyzer. Once they are perpendicular, I place the illuminator in position and rotate the sample until I get good colors.

  • Love
  • Like
Likes pinball1970 and DrDu
  • #11
And the Ehringhaus? It seems to live in quite a complete pol mic, doesn't it?

  • #12
DrDu said:
Here some pictures:
1. Prehnite, Norway
2. Essexite, Kaiserstuhl Volcanoe, Germany
3. Nummulith, Bad Adelholzen, Germany
4. Nummulith, Glauconitic filling after treatment with HCl. Bad Adelholzen
5. Limburgite, Limberg, Germany
6. Chondrite, North Africa

I just realized that the photos are not always shown in the same order. So consider this to be a quiz!

Nice! What lens did you use for these?

  • #13
DrDu said:
And the Ehringhaus? It seems to live in quite a complete pol mic, doesn't it?

Yes, when I want to use the Ultraphot as a microscope, I switch out all the luminar/macro stuff and install 'normal' microscope stuff.

  • #14

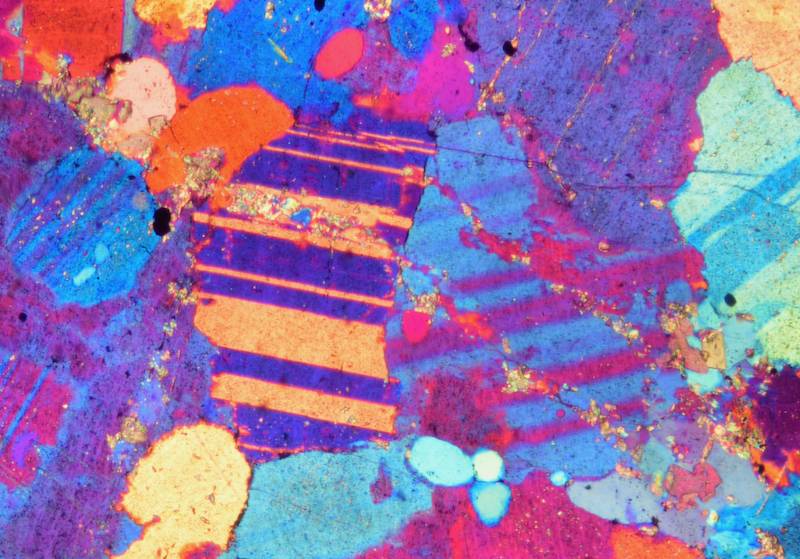

I received a bunch of thin sections originating from the Fen Complex, I believe this one is a carbonatite, specifically søvite:



I also found crystals showing cross-hatched twinning but couldn't get a decent image (for now).


Attachments

  • Untitled.jpg
    83 KB · Views: 99
  • Like
  • Wow
Likes pinball1970 and berkeman
  • #15
Andy Resnick said:
originating from the Fen Complex,
Pretty cool place!

  • Like
Likes Andy Resnick and pinball1970
  • #16

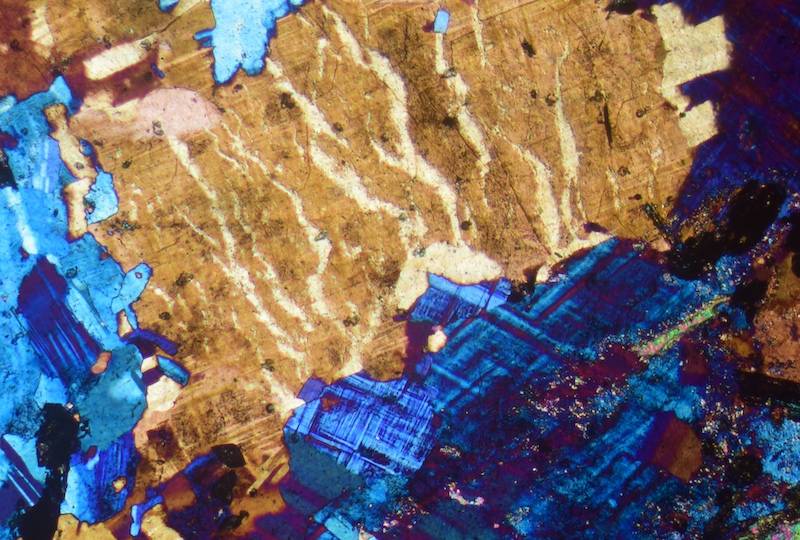

Another image from a sample of søvite, it's pretty wild:

DSC_9699 copy.jpeg


I think some of the other samples are of 'damtjernite', but I haven't gotten a compelling image yet.

  • Like
Likes berkeman
  • #17
The cross-hatched mineral is probably microcline. In the left corner maybe some plagioclase.

  • #18
I agree. In other locations in this sample, there are micaceous brucite crystals.... lots of cool stuff to look at!

  • #19
Here's a few images of a partially serpentinized olivine phenocryst, from a different sample (not sure what rock type):

DSC_0657 copy.jpeg


A closer view shows some of the reaction-diffusion kinetics resulting in a spatial distribution of magnetite crystals:

DSC_0658 copy.jpeg


The black stripe long the bottom is a magnetite vein where (I think) the reaction initiated, and the upper corner shows some unaltered olivine. The small black dots are magnetite crystals. Here's another example:

DSC_0669 copy.jpeg


Enjoy!

Last edited:
  • #20

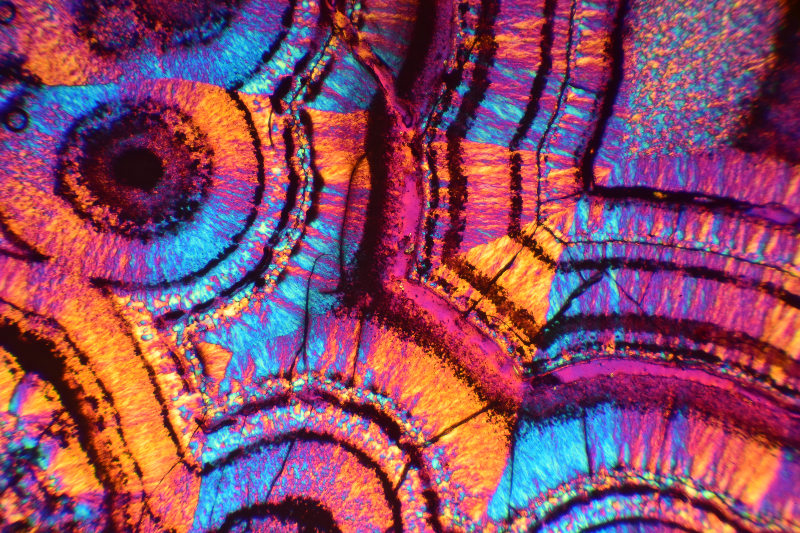

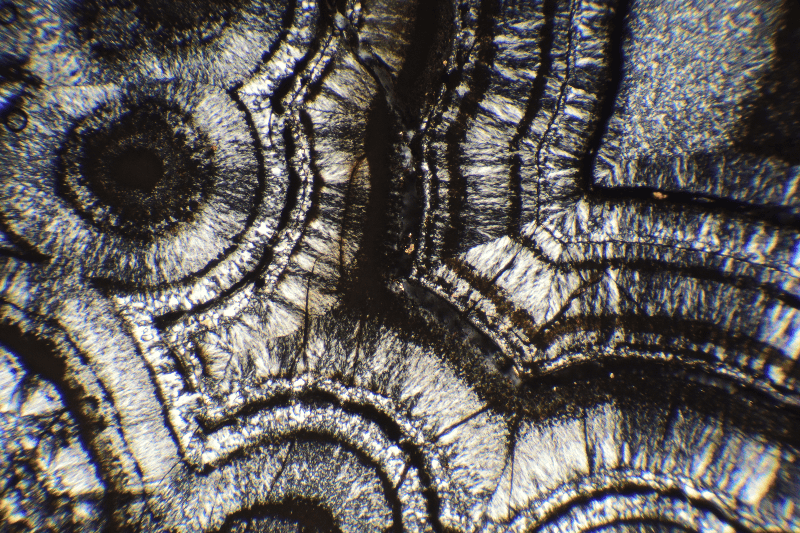

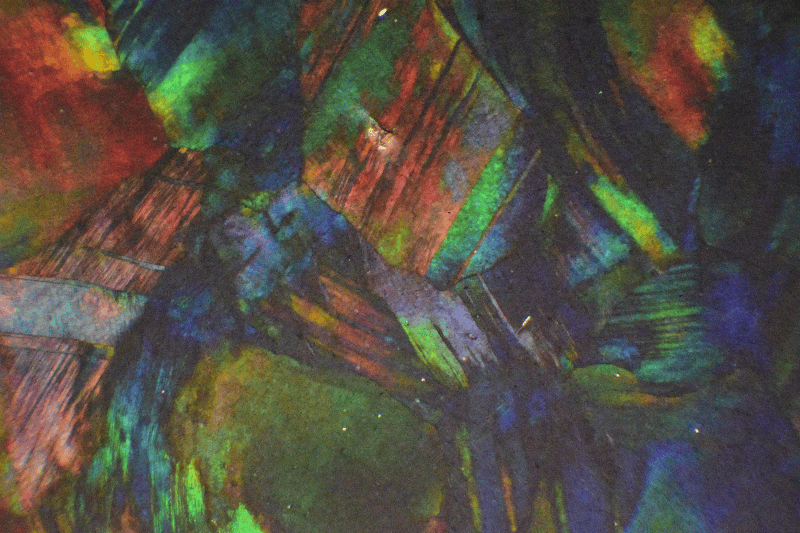

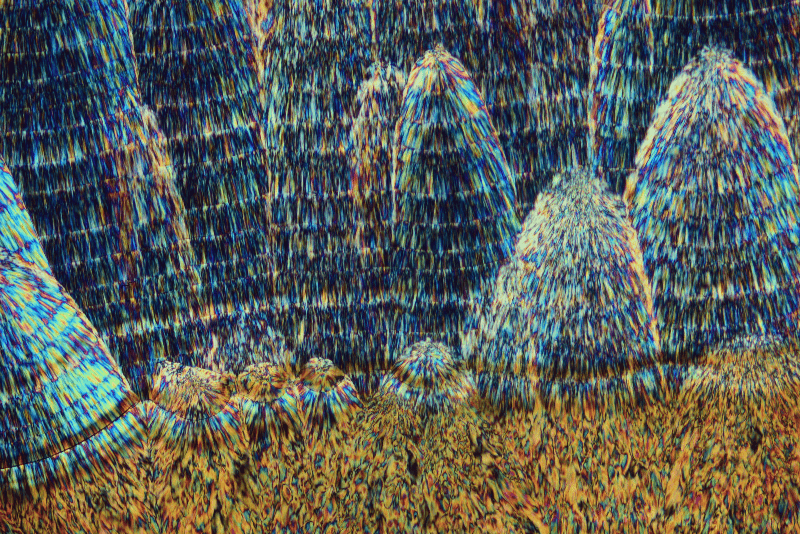

Some samples I sent out for thin sectioning came back- I'm really pleased with how they came out. Here's agate at 4x (crossed polars and then crossed polars + 1λ waveplate)




  • Like
Likes BillTre
  • #21

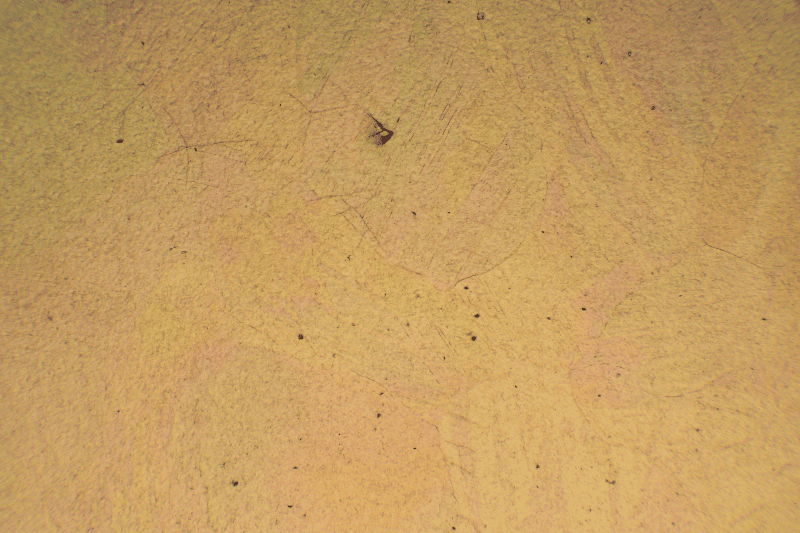

And here's opal, first at 4x: no polarizer, and then crossed polars:





The colors come from diffraction, not birefringence. Using a 1λ plate turns the field a uniform purple-red color.

To show how opal is a diffractive material, I imaged at 40X, no polarizers, to show the microstructural spheres- opal is a naturally ocurring photonic bandgap material:


  • Like
  • Love
Likes DrDu and jim mcnamara
  • #22

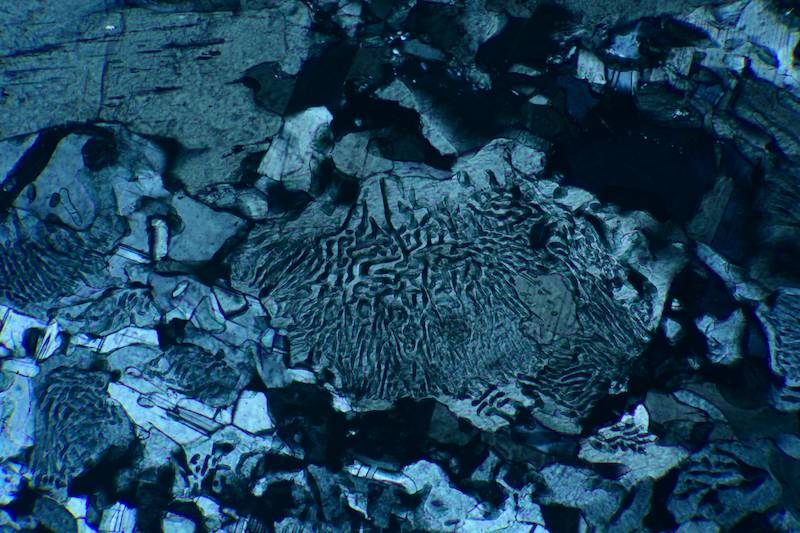

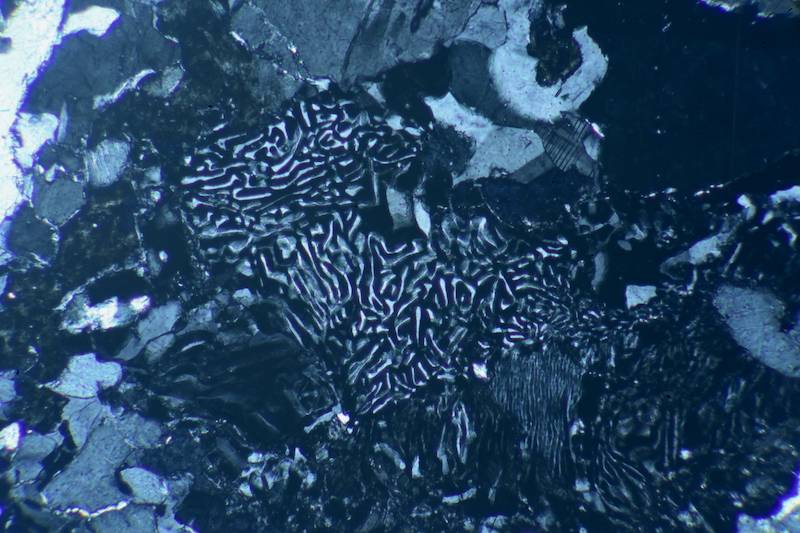

These are examples of granophyre: the first two are through crossed polars, while the third adds a full-wave plate for color.

DSC_5273 copy.jpeg


DSC_5275 copy.jpeg


DSC_5276 copy.jpeg


Granophyres are examples of eutectic mixtures; in this case alkali feldspar and quartz.

  • #23
Nice myrmekitic intergrowths!

  • Like
Likes Andy Resnick
