Is my solution for this circuit correct, if not

  • Engineering
  • Thread starter van
  • Start date
  • Tags
    Circuit
In summary, the conversation is about a Wien-Bridge oscillator circuit and finding the appropriate values for the resistors and capacitors in order to achieve perfect sinusoidal variations and a desired oscillation frequency. The circuit equations are written in state-space and the second order differential equations are obtained. The value of =/ for optimal oscillation is determined and the solutions for voltages 1 and 2 are derived. The standard values for resistors and capacitors are listed for reference.
  • #1
van
2
0
HI EVERYONE

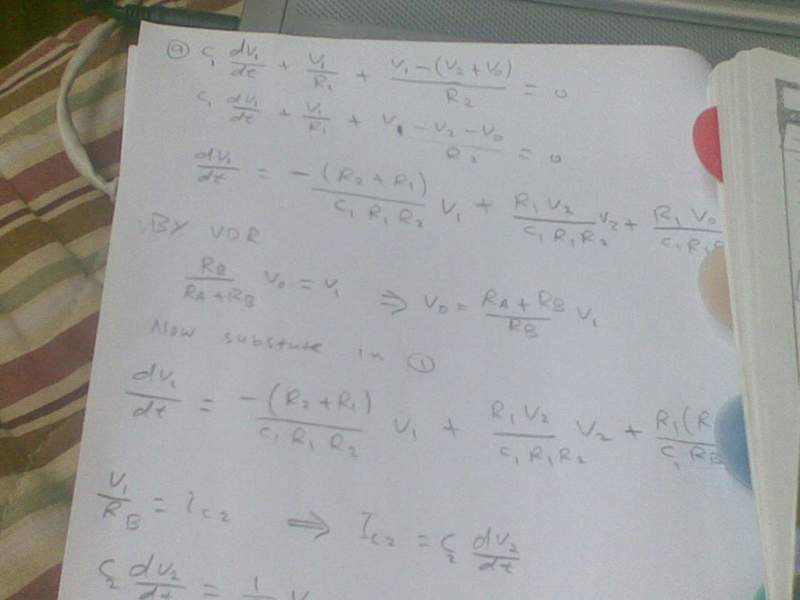

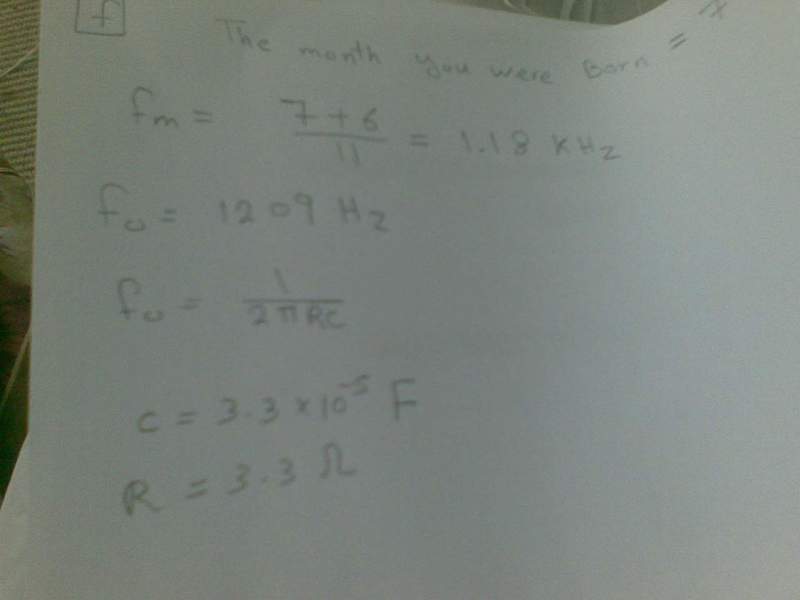

the circuit and my solution are (as attachment)

the qustion is

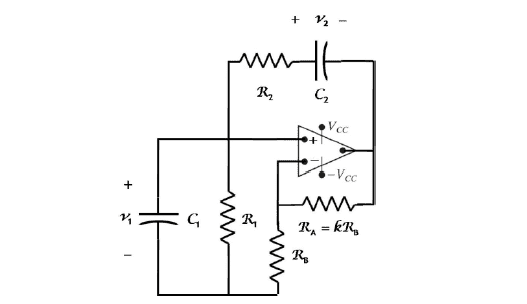

Consider the Wien-Bridge oscillator circuit in the figure.
(a) Write down the circuit equations in state-space in terms of the capacitor voltages 1 and 2.
(b) Obtain the second order differential equations that describe the behaviors of 1 and 2.
(c) Determine the value of =/ for which the voltages will show perfectly sinusoidal variations when they have nonzero initial values. Find the period of oscillation.

(d) Assume that the condition derived in the previous part is satisfied and derive the solutions for voltages 1 and 2 in terms of the initial voltages.
(f) Choose the resistors and the capacitors among the standard values in such a way that the oscillation condition is satisfied and the oscillation frequency is as close as possible to a value that is obtained as follows: =The Month You were Born+611 =The Standard Frequency that is Closest to The list of standard frequencies: {697,770,852,941,1209,1336,1477,1633} Hz The list of standard resistances: {1,1.2,1.5,1.8,2.2,2.7,3.3,3.9,4.7,5.6,6.8,8.2} ×10 Ω The list of standard capacitances: {1,1.5,2.2,3.3,4.7} ×10 F


thanks
