Shear Diagram - Beam with 3 supports

In summary, the conversation was about solving for the reactions and drawing a shear diagram for a compound supported beam using statics equations. The person asking the question was struggling with formulating the equations and was seeking clarification on the correct method. Another person joined the conversation and provided guidance on how to approach the problem.
  • #1
teeth
2
0

Homework Statement

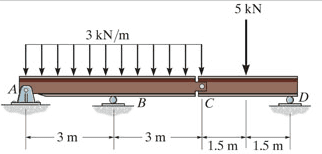

Draw the shear diagram for the compound supported beam.


Homework Equations



Statics... so sum of moments at any point or forces in any direction are 0

The Attempt at a Solution



I summed the forces in the y direction, as well as the moments at A and moments at B, but using these 3 equations causes the variables to cancel out when solving for the reactions. I get 0 = 0...
I guess I cannot use two moment equations, but then how am I to solve this? I'm in first year statics.

My equations are...
[tex]0 = \sum F_y = A_y + B_y + D_y -3*6 - 5[/tex]
[tex]0 = \sum M_A = B_y*3 + D_y*9 -3*6*3 - 5*7.5[/tex]
[tex]0 = \sum M_B = -A_y*3 + D_y*6 - 5*4.5[/tex]
Counter-clockwise moment is positive

Last edited:
Physics news on Phys.org
  • #2
You have a pinned joint at point C. Try splitting the single beam into two parts: A-B-C and C-D. Write separate equations of static equilibrium for each piece of the beam. What's the bending moment at point C?

  • #3
Sorry, is the bending moment at C zero?
I tried getting isolating for [tex]C_y[/tex] but I keep getting [tex]C_y = 0[/tex]
Is the upward force at pin C the same as the "shear force" at C?

  • #4
teeth said:
Sorry, is the bending moment at C zero?

Yes. The pin cannot develop a moment.

I tried getting isolating for [tex]C_y[/tex] but I keep getting [tex]C_y = 0[/tex]
Is the upward force at pin C the same as the "shear force" at C?

If you write equilibrium equations for beam C-D, you'll see that Cy cannot be zero.

  • #5
teeth said:

Homework Statement


Draw the shear diagram for the compound supported beam.


Homework Equations



Statics... so sum of moments at any point or forces in any direction are 0

The Attempt at a Solution



I summed the forces in the y direction, as well as the moments at A and moments at B, but using these 3 equations causes the variables to cancel out when solving for the reactions. I get 0 = 0...
I guess I cannot use two moment equations, but then how am I to solve this? I'm in first year statics.

My equations are...
[tex]0 = \sum F_y = A_y + B_y + D_y -3*6 - 5[/tex]
[tex]0 = \sum M_A = B_y*3 + D_y*9 -3*6*3 - 5*7.5[/tex]
[tex]0 = \sum M_B = -A_y*3 + D_y*6 - 5*4.5[/tex]
Counter-clockwise moment is positive

Hi Teeth, I had a query.

By taking the moments about Point A and B, You have formulated the equations 2 and 3.
Is this way of generating equations right ?

Looking forward to a reply from you soon.

Aman Ratan
Thanks

  • #6
Aman Ratan said:
Hi Teeth, I had a query.

By taking the moments about Point A and B, You have formulated the equations 2 and 3.
Is this way of generating equations right ?

Looking forward to a reply from you soon.

Aman Ratan
Thanks
Teeth hasn't been around PF since posting this question a year and a half ago, so I hope you are not looking for a reply any time soon.

PF generally frowns on resurrecting old posts like this.

It is OK to link to an old post if you have a particular question about it, but you should start your own thread in that case.

  • Like
Likes Aman Ratan
  • #7
SteamKing said:
Teeth hasn't been around PF since posting this question a year and a half ago, so I hope you are not looking for a reply any time soon.

PF generally frowns on resurrecting old posts like this.

It is OK to link to an old post if you have a particular question about it, but you should start your own thread in that case.

Thanks SteamKing
