Simple Circuit THEVENIN or Norttons

In summary, the student is struggling with a problem that can be solved using the method of superposition. They have already solved it using this method, but are attempting to also solve it using Thevenin or Norton's theorem. They have tried multiple combinations but have not been successful. The student is seeking help and also mentions that their teacher said that these theorems can solve any problem.
  • #1
FahimP
14
0

Homework Statement



I have this problem its been bothering me for a while. The problem asks to be solved by method of superposition. I have already solved it but I am sure it can also be solved by thevenins or nortons. I can tried many different combinations but i can't seem to get it. Please take a look at it and let me know if it is possible or not.

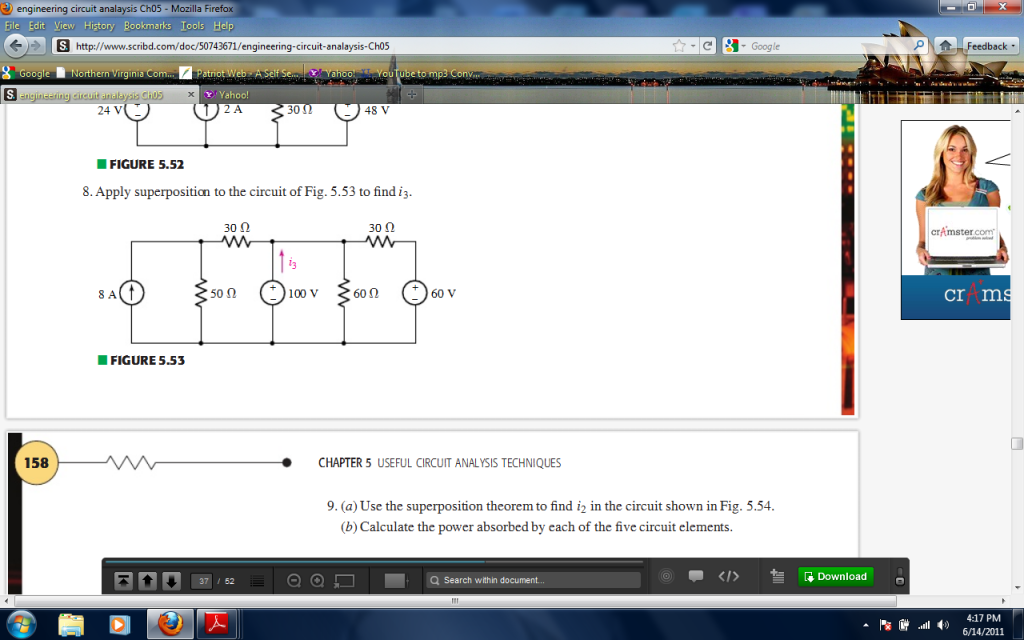

here is thelink to the picture

http://i172.photobucket.com/albums/w30/afghanplayr/1-2.png

Homework Equations



It is easily solvable by superposition but i think my teacher said that thevenin and nortons can solve " ANYTHING" so I am basically trying to apply that to everyproblem. But it doesn't work all the time .

The Attempt at a Solution


i solved this problem by superposition i got -750 mA . I know its right . But when i try to solve it by thevenins or nortons i get stuck.

Physics news on Phys.org
  • #2
FahimP said:

Homework Statement



I have this problem its been bothering me for a while. The problem asks to be solved by method of superposition. I have already solved it but I am sure it can also be solved by thevenins or nortons. I can tried many different combinations but i can't seem to get it. Please take a look at it and let me know if it is possible or not.

here is thelink to the picture

http://i172.photobucket.com/albums/w30/afghanplayr/1-2.png

Homework Equations



It is easily solvable by superposition but i think my teacher said that thevenin and nortons can solve " ANYTHING" so I am basically trying to apply that to everyproblem. But it doesn't work all the time .

The Attempt at a Solution


i solved this problem by superposition i got -750 mA . I know its right . But when i try to solve it by thevenins or nortons i get stuck.

A number of source transformations should be able to reduce that circuit down to something very simple.

If you want us to correct you on your attempt at solving the problem using Thevenin or Nortons theorem (or source transformations) then you are going to need to post your work.
