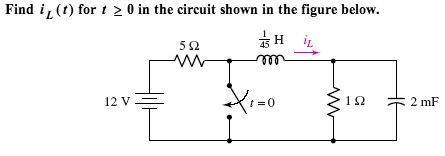

for t > 0:
α = 1/2RC = 250
ω = 1/√(LC) = 150
ω < α overdamped
s1 = -50
s2 = -450
vc(t) = Ae[SUP]-50t[/SUP] + Be[SUP]-450t[/SUP]
dv/dt = -50Ae[SUP]-50t[/SUP] - 450Be[SUP]-450t[/SUP]
for t <0 :
Vcap = 12(1/6) = 2 V (open circuit)
Iind = 12/6 = 2 A (short circuit)
t > 0 :
Vcap = 2V
Iind = 2A
vc(0) = 2V = A+B
dv(0)/dt = -50A - 450B = icap(0)/CAn RLC switch circuit is a type of electrical circuit that contains a resistor (R), inductor (L), and capacitor (C) connected in series or parallel. It is used to control the flow of electricity by switching between different values of resistance, inductance, and capacitance.
