Twisting at shear center / centroid

In summary, the author discusses the bending and twisting of a channel when a force is applied through its centroid. However, it is also mentioned that the shear center, which is located on the axis of symmetry, can prevent twisting. This raises confusion about whether the member will twist when the force is applied through the centroid or shear center. The author also explains why the shear center is located outside the C channel. Further, the notes mention that to prevent twisting, the force should be applied at both the centroid and the shear center simultaneously. The meaning of the force applied along the once vertical, unsymmetrical axis that passes through the centroid is also questioned.
  • #1
fonseh
529
2

Homework Statement

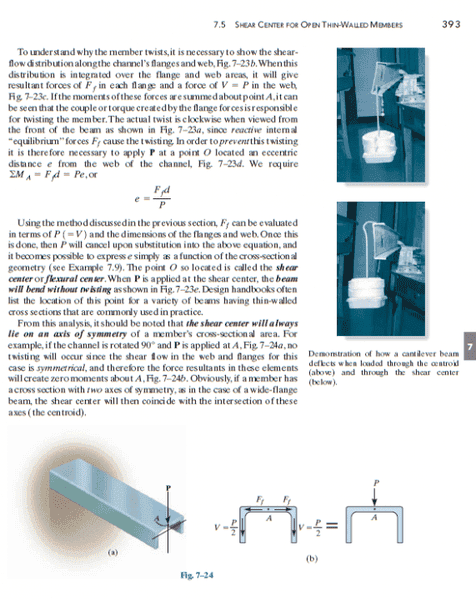

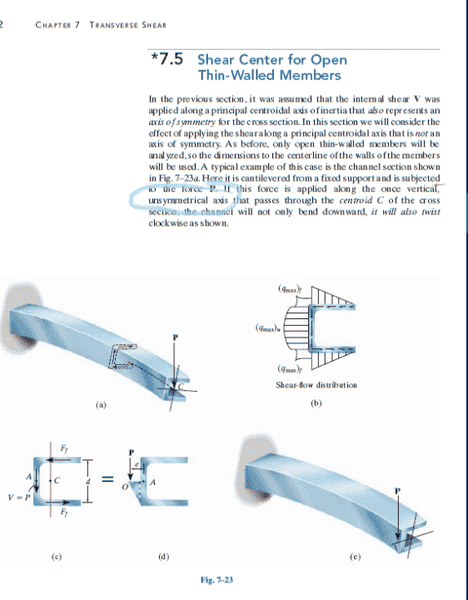

In the notes , the author stated that when the force is applied through the centorid of cross section , the channel will bend and twist.
but , on the second page , the author stated that the shear center lies on an axis of symmetry of member's cross sectional area...
So, i am confused whether the member will twist or not when the force P is applied thru the centroid or shear center ...

Why the shear center is located at O , which is located outside of the C channel ?

Homework Equations

The Attempt at a Solution


Is there anything wrong with the notes ? [/B]


Attachments

  • 438.PNG
    56.6 KB · Views: 450
  • 439.PNG
    89.4 KB · Views: 408
Physics news on Phys.org
  • #2
In the notes , it's also stated that to prevent twisting , the P should be applied at O , does it mean we have to apply the force thru the centoid and also at the O at the same time to prevent twisting ? I'm confused

  • #3
Bump

  • #4
what is the meaning of the force is applied along the once vertical , unsymmetrical axis that passes thru centroid ? Since the applied force already passing thru centroid , it's already the symmertical axis , right ?
