Why Are Both KE and PE Maximal at Equilibrium in a String Wave?

[Saw]

I am reading in Halliday that the kinetic energy and potential energy carried by a wave in a string are both maximal at y = 0 (equlibrium position) and zero at y = A or r (maximal elongation).

This sounds strange to me because usually KE decreases as PE increases and vice versa. Besides, if at any time both types of energy were zero, shouldn't the wave stop?



[Jilang]

That doesn't sound right to me! PE should be a minimum at the equilibrium position.



[jtbell]

Can you give us a page reference (or chapter+section), and an exact quote of the paragraph, so people can see what you read?



[Saw]

That doesn't sound right to me! PE should be a minimum at the equilibrium position.

Well, this is what he literally says:

When the element is rushing through its y =
0 position (element b in
Fig. 16-9), its transverse velocity —and thus its kinetic energy —is a maximum.

when the element is rushing through its y =
0 position, it has maximum
stretch and thus maximum elastic potential energy.

In fact, if one part were wrong, I tend to think it would not be the part of PE, because actually (as a drawing in the book shows) the string is more stretched at y = 0.



[Saw]

Can you give us a page reference (or chapter+section), and an exact quote of the paragraph, so people can see what you read?

Fundamentals of Physics, 9th edition, Halliday and Resnick, Jearl Walker, Section 16-7, pages 421 and 422.



[Saw]

I have investigated a little. This article sheds some light:

- Actually Halliday, like other textbooks, purposefully provides this explanation (no typing error): "in a traveling wave the potential and kinetic energies are in phase: they are both maximal together, and they vanish together too. Specifically, at a crest or a trough the kinetic energy vanishes as the string element is momentarily stationary, and the potential energy of the string element vanishes because the string element is horizontal. At zero displacement both are maximal, as both the string transverse velocity and the string’s slope are maximal".
-As to why the wave does not stop at a crest or a trough, the standard explanation seems to be "That energy has propagated along the string to a material element that had zero energy before, and so on".
- However, the autor objects that such approach does not fit with standing waves, where precisely there is no energy transfer, no energy propagation.
- In the author's opinion, the standard derivation fails because it "is based on the stretching amount of the local string element, without worrying what the two endpoints of the strings are doing". After taking this into account, the article concludes that the energy of the wave is always constant and alternates as usual between KE and PE.

This looks appealing to me, but I do not understand well how considering the end points leads to such conclusion. Can anyone comment?



[Jilang]

Heavens, Why would they be equating tension (stretching) in the string the potential energy? To a first approximation I thought always the tension was assumed to be constant along the string (T) if the ends are fixed.



[AlephZero]

I don't have the book, but it would have been very helpful if the OP had said the question was about traveling waves, not standing waves.

I haven't read every word of the arxiv link in detail, but it seems to be settting up a straw-man paradox about tthe difference between the total amount of energy in the wave and the energy in a fixed (small) segment of the string, and then knocking it down again. It seems self evident (to me anyway) that for a traveling wave, (1) the total energy in the wave is constant, but (2) the energy travels at the same speed as the wave.

Heavens, Why would they be equating tension (stretching) in the string the potential energy? To a first approximation I thought always the tension was assumed to be constant along the string (T) if the ends are fixed.

You have to do work to rotate an element of the string which is under tension, i.e. change its slope.

If you isolate an small element of string, there are two ways to find the amount of work. One way (probably the most "obvious" way for students who have not studied continuum mechanics yet) is to find the "force x distance" work done by the tension forces applied to the ends of the string element.

The other way is to notice that the length of the string segment changes as the slope changes (that is obvious if you think about a large slope, for example 45 degrees) and calculate the change in internal energy. If you know about Green's strain tensor etc in continuum mechanics, this s just "plug and chug", compared with the first way, of drawing a free body diagram and having to think about what is going on.

Both ways give the same answer, and if the amplitude of the wave is small enough to ignore terms above first order, they both assume the string tension is constant.



[Saw]

I don't have the book, but it would have been very helpful if the OP had said the question was about traveling waves, not standing waves.

The OP is about both traveling and standing waves. I don’t think that the issue at hand (are KE and PE descending and augmenting in phase or do they alternate?) changes because we focus on traveling or standing waves, does it? In fact, the arxiv that I mentioned assumes so and precisely notes that Hallyday’s explanation does not work in standing waves and uses that as an argument to claim that such explanation is not valid, either, for the traveling ones.

It seems self evident (to me anyway) that for a traveling wave, (1) the total energy in the wave is constant, but (2) the energy travels at the same speed as the wave.

Sure. The question is only that Halliday, while accepting those postulates, presents a shocking construction where (given that -in their opinion- the components of total energy, KE and PE, move in phase), the energy somehow vanishes at some instants, only to resuscitate later with the same constant value…

You have to do work to rotate an element of the string which is under tension, i.e. change its slope.

If you isolate an small element of string, there are two ways to find the amount of work. One way (probably the most "obvious" way for students who have not studied continuum mechanics yet) is to find the "force x distance" work done by the tension forces applied to the ends of the string element.

The other way is to notice that the length of the string segment changes as the slope changes (that is obvious if you think about a large slope, for example 45 degrees) and calculate the change in internal energy. If you know about Green's strain tensor etc in continuum mechanics, this s just "plug and chug", compared with the first way, of drawing a free body diagram and having to think about what is going on.

Both ways give the same answer, and if the amplitude of the wave is small enough to ignore terms above first order, they both assume the string tension is constant.

Yes, we can assume that the string’s tension is constant, but the fact is that for the wave to propagate we need the string’s segment affected at each instant by the wave motion to be stretched, don’t we?

Given this, focusing on the subject of the OP, which approach are you supporting, (i) Halliday’s or (i) the arxiv’s: (i) does the stretching (and hence the EP) go up and down in phase with velocity (hence with EK) or (ii) do they alternate?

I think they have to alternate, although I do not follow what the arxiv says about the string ends.

I am thinking that simply the string is communicated a velocity v (maximal KE, PE still zero) and this motion stretches the string, although this effort progressively consumes the v, until the maximum amplitude is reached at the crest (KE zero, maximal PE) and then the cycle continues with compression entailing that the PE is consumed to the benefit of KE, until upon return at equilibrium we get again maximum KE and PE zero…

Halliday book’s problem may be that they rely on the below drawing as if it were (in their own words) a "snapshot" (status at an instant). That is why they say that at equilibrium position (y = 0) the string element is at the maximum of its stretching. However, this is not a snapshot, but a graphic. In reality the string only reaches maximum stretching when it has consumed all the KE, i.e. when the wave reaches the crest.

Does it make sense?



[Saw]

I have checked that in the case of the standing wave, it is generally admitted that the energy sloshes between KE and PE, just as in the spring-mass system, for example. Why should the traveling wave be different? After all, what we call a "standing wave" is just "two traveling waves overlapping". And this overlapping may be relevant for other purposes, but it should not change anything in this particular respect we are concerned with.

This suggests that the Halliday passage would be wrong, would you agree on that? But what would then be the right explanation, the above mentioned arxiv's or a simpler one as commented in my previous post?



[Jilang]

We might consider what the situation is with a string with one free end where you give it a sharp up and down pull at the fixed end to create a single disturbance traveling along the length. In that circumstance you could regard the point of greatest deflection to be under the most tension with the rest of the string having zero PE and zero KE until the deflection gets there.



[Saw]

Jliang, I am not sure I follow your thought experiment. But, yes, certainly, the more I think of it, "the point of greatest deflection" (y = maximum) looks like that "that under most tension" (PE = maximum, KE = 0). However, the fact is that textbooks say the opposite (y = maximum --> PE and KE = 0), which really sounds awkward. It would be nice if we got some guidance from the experts.



[Jilang]

I found this article which is very good and has cleared up the confusion for me:
http://faculty.ifmo.ru/butikov/WaveEnergyPS.pdf
The potential energy of the string as a whole is a mimimum when the standing wave passes through the the equilibrium position, but it is not so for each little segment. Thanks for raising this issue - it seems there is a lot of confusion about it from the articles!



[Saw]

Thank you Jilang for finding this article. The author, like most sources, supports the idea that KE and PE travel in phase in a string wave. He even mentions and criticizes the other article I lad linked to. So I suppose that I should accept such general view, although I confess that I still find it hard to assimilate.

I can understand that one thing is total energy and another energy density at a given point or segment. But then I need some explanation as to how energy keeps travelling, anyhow, at least if energy is said to become ZERO (!) at a given point. What I find in the books is that the key lies in the fact that energy is transferred. Well, yes, it may be that at y = maximum the relevant point or segment (P) has now energy zero necause it has already transferred its energy to the next element (P+1). But if P has zero, it is because energy was dwindling before. So what P may have transferred is what it received from P-1, that is to say, very little. How is it that, in spite of everything, the energy builds up again, so as to become maximum at the equilibrium point?

I cannot understand how mechanical energy can oscilate between different values and still be conserved. Saying that it is conserved over the cycle does not fix the problem for me. That is only a statement, but I would need an explanation of the physical mechanism ensuring that the cycle is actually made possible. The oscillation between PE and KE (with ME remaining as constant) is such explanation. If that does not apply, I need an alternative.

By the way: this applies also to EM waves. The E and B fields are also said to travel in phase. How can that be and, what is more, how can they create each other this way? How can something that is zero create anything?

[Note: Trying to be proactive in finding an answer, I have thought that the following may be an explanation. With the transfer explanation, we have ensured that P+1 at least gets a little energy packet. From then on, the energy builds up because the little packet travels more slowly than its chasers and it is progressively caught up by the latter. Can that be the right track?]



[sophiecentaur]

Heavens, Why would they be equating tension (stretching) in the string the potential energy? To a first approximation I thought always the tension was assumed to be constant along the string (T) if the ends are fixed.

I would tend to agree with that. The speed at which any tension along the string (tangential to the curve) would be much higher (bulk modulus and density would imply the speed would be that of sound in steel) than the transverse wave speed (a few m/s). It could surely be taken as instantaneous, imo and, hence, the same all the way along. And is it not obvious that the identifiable Potential Energy of a section of string is the work done in getting it to its position - which makes it a maximum when it's furthest from the equilibrium position: in quadrature with the KE, as expected.



[Jilang]

Reading the article earlier It seems that there is a net transfer of energy between the nodes and the antinodes throughout the cycle. This makes sense as at maximum displacement there is most energy at the nodes and at minimum displacement most energy is at the antinodes. So it sloshes backwards and forwards by pi/2 in each direction. Looking forward to finding out more about the E B situation over the weekend! A delving we will go...



[sophiecentaur]

I think there is confusion between the progressive wave situation and the standing wave situation. At the node (this is only on a standing wave) there is never any PE or any KE. In the antinode, energy is exchanged between PE and KE - just like with a mass bouncing on a spring. The string is not stationary at an antinode (obvious I know) but what you see is a 'stationary' envelope and that can be confusing when an explanation is needed.



[AlephZero]

And is it not obvious that the identifiable Potential Energy of a section of string is the work done in getting it to its position

True.

- which makes it a maximum when it's furthest from the equilibrium position:

False, but I don't feel inclined to write a chapter of a textbook on continuum mechanics right now, to explain why.

in quadrature with the KE, as expected.

That is confusingly ambiguous, if it's not clear whether you are talking about traveling waves or standing waves, and whether you mean in quadrature with respect to position along the string, or with respect to time at a fixed position.



[Jilang]

I would tend to agree with that. The speed at which any tension along the string (tangential to the curve) would be much higher (bulk modulus and density would imply the speed would be that of sound in steel) than the transverse wave speed (a few m/s). It could surely be taken as instantaneous, imo and, hence, the same all the way along. And is it not obvious that the identifiable Potential Energy of a section of string is the work done in getting it to its position - which makes it a maximum when it's furthest from the equilibrium position: in quadrature with the KE, as expected.

Sophie, glad you could make it. I saw you were very busy with Standing Waves and Travelling Waves, but hoped this thread would keep going long enough for you to get here! Are we on the right track?



[Saw]

And is it not obvious that the identifiable Potential Energy of a section of string is the work done in getting it to its position - which makes it a maximum when it's furthest from the equilibrium position: in quadrature with the KE, as expected.

Well, that PE is maximum when y = y_m. i.e. when amplitude is maximum, is what I also tended to think. But I am trying to convince myself of the opposite because all consulted sources say that PE is maximum at equilibrium position. i.e. when y = 0. In any case, what seems out of discussion is that such PE is associated to elastic stretching.

I will quote the full relevant passage in Halliday & Resnick for reference (fig. 16-9 is the one I copied before), but most other sources say the same:

Kinetic Energy

A string element of mass dm, oscillating transversely in simple harmonic motion as the wave passes through it, has kinetic energy associated with its transverse velocity . When the element is rushing through its y = 0 position (element b in Fig. 16-9), its transverse velocity —and thus its kinetic energy —is a maximum. When the element is at its extreme position y =y_m (as is element a), its transverse velocity —and thus its kinetic energy —is zero.

Elastic Potential Energy

To send a sinusoidal wave along a previously straight string, the wave must necessarily stretch the string. As a string element of length dx oscillates transversely, its length must increase and decrease in a periodic way if the string element is to fit the sinusoidal wave form. Elastic potential energy is associated with these length changes, just as for a spring. When the string element is at its y = y_m position (element a in Fig. 16-9), its length has its normal undisturbed value dx, so its elastic potential energy is zero. However, when the element is rushing through its y = 0 position, it has maximum stretch and thus maximum elastic potential energy.



[sophiecentaur]

True.



False, but I don't feel inclined to write a chapter of a textbook on continuum mechanics right now, to explain why.



That is confusingly ambiguous, if it's not clear whether you are talking about traveling waves or standing waves, and whether you mean in quadrature with respect to position along the string, or with respect to time at a fixed position.

Work needs to be done as you pull a section of the string away from its equilibrium position (?) and that, to my mind, is how we define Potential energy.

Quadrature in both time and space for a progressive wave and in time for a standing wave. Sections along the whole string on a standing wave are all moving with the same motion (SHM) it's just the amplitude that changes. In a progressive wave, the maximum displacement (aka PE) is ∏/2 from the maximum KE (at zero displacement), however you look at it.
So the confusion arises between the two types wave; it's just important for textbooks to make clear what it is they're describing, I guess. The PE and KE maxes are in the same place for a standing wave and this can be derived from the sum of the two traveling waves that add vectorially when you hit a normal mode frequency.



[Saw]

At the node (this is only on a standing wave) there is never any PE or any KE.

Following another edition of Resnick I own, both KE and PE are everywhere present in a standing wave, also at the nodes. See the picture below, where it is shown that at the nodes KE is maximum.

This is not the object of the OP, however. This display (a constant interchange between PE and KT, with the sum -total ME- remaining constant) is not paradoxical. What is shocking is what is said to happen with traveling or progressive waves.

Hence, if you want to stick to the subject of the OP, I would kindly request you to concentrate on the issue of traveling waves. Standing waves may be brought as an example or argument by analogy, but what happens with them is not in principle problematic for me.



[sophiecentaur]

Well, that PE is maximum when y = y_m. i.e. when amplitude is maximum, is what I also tended to think. But I am trying to convince myself of the opposite because all consulted sources say that PE is maximum at equilibrium position. i.e. when y = 0. In any case, what seems out of discussion is that such PE is associated to elastic stretching.

I will quote the full relevant passage in Halliday & Resnick for reference (fig. 16-9 is the one I copied before), but most other sources say the same:

If you use the normal definition of PE, the maximum displacement will involve the maximum PE. I think the tension is a red herring - although, of course, you need tension for a wave to occur at all. But afaics the tension will just vary in time over the cycle of a standing wave. There could be a difficulty in saying what happens with a progressive wave but I don't see why it shouldn't be constant over the whole string - assuming it's properly terminated etc.
This link works out the speed on the basis of a constant tension along the string, I think.



[sophiecentaur]

@Saw
I posted the above before reading your last post.
Sticking to progressive waves then. Is it not inconceivable that the wave on a string should turn out to have PE and KE in phase when all other mechanical waves have them in quadrature? I cannot see how the tension can vary appreciably along the string as it is a longitudinal (P) wave and virtually instantaneous* compared with the slow transverse wave. Can there be any objection to my definition of PE? It works for other waves - and for gravity, electricity etc. etc.
PE = ∫Displacement times restoring force
I realize the force is ultimately due to the string tension and that the tension is horizontal at a peak so the net force is zero - but it still takes Work to get to that position and the integral is not zero. There must be experimental measurements of tension along a wire with a wave on it. That could help resolve the problem.

That link is from MIT but I have only the URL to go on - not a proper reference. In any case, it's textbook stuff, isn't it? Plus, it gives the answers we know and love.



*For steel, the speed of compression waves is around 6,000m/s, which is ten times the speed of the transverse wave example they use for a 0.4mm piano string in that link.



[sophiecentaur]

I can't subscribe to the idea that KE is present at a (ideal) node. If there is no displacement then there is no velocity. Unless the model introduces some longitudinal motion of the string, of course - but which way would it be if the SWR is ∞ and the waves are, in consequence, of equal amplitude in each direction?

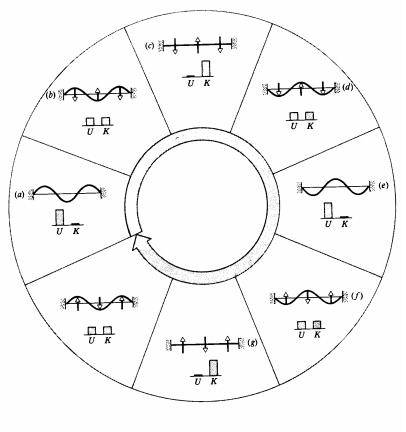

BTW, I need some help with that circle diagram. Can we have a bit of explanation? I need the 'key' with vital information for me to understand.



[Saw]

I can't subscribe to the idea that KE is present at a (ideal) node. If there is no displacement then there is no velocity. Unless the model introduces some longitudinal motion of the string, of course - but which way would it be if the SWR is ∞ and the waves are, in consequence, of equal amplitude in each direction?

BTW, I need some help with that circle diagram. Can we have a bit of explanation? I need the 'key' with vital information for me to understand.

This edition is in Spanish, so I cannot copy and paste, but you may be right. The text does say that, when all points of the string go through equilibrium position, the energy is only stored as KE (which thus reaches its maximum), but it may be referring to points "other than the nodes".



[Saw]

Is it not inconceivable that the wave on a string should turn out to have PE and KE in phase when all other mechanical waves have them in quadrature?.

Yes, that is what struck me (and later Jilang) and hence the OP. But think of the example of the EM wave: E and B travel in phase. It is not the same. You don't say that an EM wave is made of PE and KE. But in LC circuits you do make the association B - coil - inductance - current - KE versus E - capacitor - capacitance - tension - PE and with those circuits you can generate EM waves... How come that in the end E and B travel in phase?

Can there be any objection to my definition of PE? It works for other waves - and for gravity, electricity etc. etc.
PE = ∫Displacement times restoring force
I realize the force is ultimately due to the string tension and that the tension is horizontal at a peak so the net force is zero - but it still takes Work to get to that position and the integral is not zero. There must be experimental measurements of tension along a wire with a wave on it. That could help resolve the problem.

That link is from MIT but I have only the URL to go on - not a proper reference. In any case, it's textbook stuff, isn't it? Plus, it gives the answers we know and love.

*For steel, the speed of compression waves is around 6,000m/s, which is ten times the speed of the transverse wave example they use for a 0.4mm piano string in that link.

There are two displacements involved here. The displacement of a given little segment from equilibrium position in the Y axis (what we could call "height") and the displacement of the elements of such segment from their own mean position with regard to each other (let us call it "length"). In calculating PE, the textbooks seem to be considering only "length"...



[Jilang]

The point made in the article in post #13 was that the work done to displace an element of the string could not be regarded as being stored in that element. However for the string as a whole everything works out as you would expect (maximum PE at maximum distortion).



[Jilang]

I can't subscribe to the idea that KE is present at a (ideal) node. If there is no displacement then there is no velocity. Unless the model introduces some longitudinal motion of the string, of course - but which way would it be if the SWR is ∞ and the waves are, in consequence, of equal amplitude in each direction?

BTW, I need some help with that circle diagram. Can we have a bit of explanation? I need the 'key' with vital information for me to understand.

Agree, there is no kinetic energy at the nodes. By definition they are not moving!



[Saw]

The point made in the article in post #13 was that the work done to displace an element of the string could not be regarded as being stored in that element. However for the string as a whole everything works out as you would expect (maximum PE at maximum distortion).

In principle, I cannot make much sense out of that statement. Can you quote the relevant text in the article? It seems to me that either you refer to specific points, e.g. those of maximum distortion (and then standard texts assign to them zero energy) or you refer to the whole string (but then you forget about the specific points and you do not contradict what had been said before about the same having zero energy).



[sophiecentaur]

In principle, I cannot make much sense out of that statement. Can you quote the relevant text in the article? It seems to me that either you refer to specific points, e.g. those of maximum distortion (and then standard texts assign to them zero energy) or you refer to the whole string (but then you forget about the specific points and you do not contradict what had been said before about the same having zero energy).

I understand what he means, I think. 'Where" the energy is stored is not relevant so much as what the work that is 'done on' a section of the string. The energy per m, stored in the string may not be the the same, at a point, as the total energy needed to get that point to its position.
I think honours are even in this situation. It just depends on how you are looking at things.



[Saw]

I still do not follow. Work is transfer of energy. So if you do work to get a point to a given position, it seems the corresponding energy should be transferred to and stored in that point and position. For instance, you kick a pendulum upwards. The KE of your foot does the work of getting the pendulum up and is transformed into and stored at such top position as PE.



[sophiecentaur]

I still do not follow. Work is transfer of energy. So if you do work to get a point to a given position, it seems the corresponding energy should be transferred to and stored in that point and position. For instance, you kick a pendulum upwards. The KE of your foot does the work of getting the pendulum up and is transformed into and stored at such top position as PE.

Easy toanswer. When you pull on the end of a spring, you say that the end has PE relative to its rest position. But the energy is stored in each coil of that spring. The potential field only describes the work done.
Consider the 'potential energy' in the pressure peaks of a sound wave in an ideal gas. That PE is really an excess of KE in the increased number of gas molecules. Nothing is ever quite what it seems.



[Saw]

Thank you. I have to assimilate that. But a quick reaction:

- It strikes me that what you are elaborating would apply to any (?) wave, whereas the textbooks' description of what happens in a string wave is presented as a peculiarity, vis-à-vis other types of waves, even vis-à-vis string standing waves.

- Besides, please note that what you are saying is that the end of the spring has ALL the PE field = ALL the work done, although actually the energy is stored in each coil. Here instead the textbooks say that the end of peak of the string has NONE. So how would you extrapolate your argument to the issue at hand?



[sophiecentaur]

I think that PE needs to be specified accurately in each case. The potential curve for the end of the spring should ( would / could) be a plot of energy against the position to which the end has been stretched. That would surely be appropriate for analysing waves.
I am in the car now ( passenger!) so I have no textbook but you need to read what it says, carefully. I would say that the energy density ( per m) is uniform but that isn't the Potential.
