Wye-Delta Transformation Problems

In summary, the Wye-Delta Transformation is a mathematical technique used to simplify complex electrical circuits by converting a delta circuit to an equivalent wye circuit or vice versa. It should be used when analyzing circuits with three phases or branches, such as in power systems and three-phase motors. The transformation involves replacing one type of circuit with its equivalent form, and it has advantages such as simplifying analysis, making it easier to determine equivalent resistance and other parameters, and identifying redundant components. However, it also has limitations, including only being applicable to three-phase circuits with balanced loads.
  • #1
vick5821
8
0

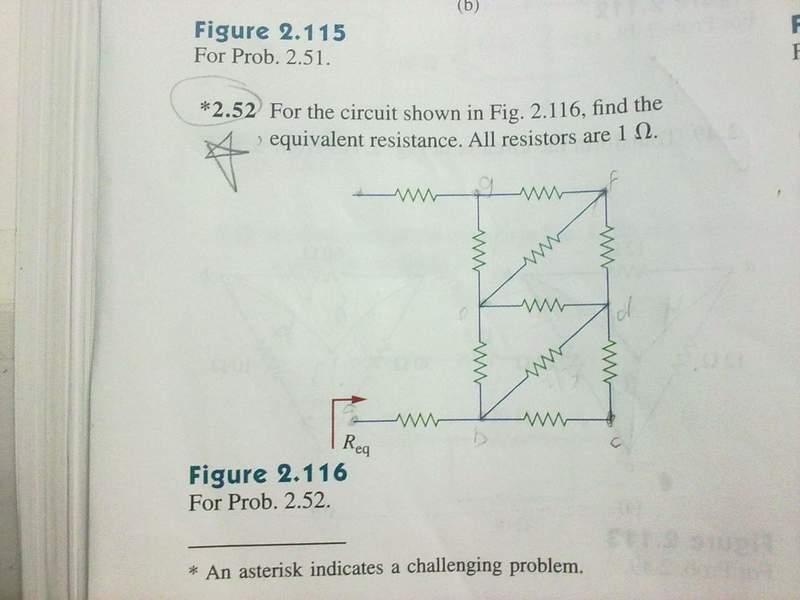

How to solve this complicated question? Can anyone guide me? Thanks


Attachments

  • 03102011617.jpg
    31.9 KB · Views: 1,150
Physics news on Phys.org
  • #2
Looks like the post title says it all.

Simplify series and parallel opportunities where you can, apply Delta-Y transform on a likely set of three resistors, rinse, repeat. End when you're left with one resistance.

  • #3
Btw, I do not quite sure how to simplfy it :( ..Still weak in the transformation...Pls help

  • #4
vick5821 said:
Btw, I do not quite sure how to simplfy it :( ..Still weak in the transformation...Pls help

Sorry vick5821, but you have to show some effort first. Them's the Forum Rules.

  • #5


I understand that Wye-Delta transformation problems can be challenging to solve. It involves converting a circuit from a Y-shaped configuration to a Delta-shaped configuration or vice versa. The key to solving this type of problem is to understand the principles of circuit analysis and the rules of Wye-Delta transformation.

Firstly, it is important to identify the resistors and their values in the circuit. Then, using the Wye-Delta transformation rules, you can simplify the circuit by replacing the Y-shaped or Delta-shaped resistors with their equivalent values. This will result in a simpler circuit that can be easily solved using traditional circuit analysis methods.

If you are having trouble solving the problem, I would recommend seeking guidance from a professor or a knowledgeable peer. Additionally, there are many online resources and tutorials available that can provide step-by-step instructions on how to solve Wye-Delta transformation problems.

In conclusion, Wye-Delta transformation problems may seem complicated, but with a solid understanding of circuit analysis and the Wye-Delta transformation rules, they can be easily solved. Don't hesitate to seek help and utilize available resources to better understand and solve these types of problems.


FAQ: Wye-Delta Transformation Problems

What is the purpose of the Wye-Delta Transformation?

The Wye-Delta Transformation, also known as the Delta-Wye Transformation, is a mathematical technique used to simplify complex electrical circuits. It is used to convert a delta (Δ) circuit to an equivalent wye (Y) circuit or vice versa. This simplification allows for easier analysis and calculations of the circuit.

When should the Wye-Delta Transformation be used?

The Wye-Delta Transformation should be used when analyzing circuits with three phases or branches. It is commonly used in power systems and three-phase motors. This transformation is also helpful when trying to find the equivalent resistance of a complex circuit.

How is the Wye-Delta Transformation performed?

The transformation involves replacing one type of circuit (wye or delta) with its equivalent form. To convert a wye circuit to a delta circuit, the three resistors connected in a wye formation are replaced by three equivalent resistors in a delta formation. To convert a delta circuit to a wye circuit, the opposite is done.

What are the advantages of using the Wye-Delta Transformation?

The Wye-Delta Transformation simplifies the analysis of complex circuits, making it easier to determine the equivalent resistance and other circuit parameters. It also allows for easier calculation of power and current in three-phase systems. Additionally, this transformation can help identify and eliminate redundant components in a circuit, reducing complexity and cost.

Are there any limitations to using the Wye-Delta Transformation?

While the Wye-Delta Transformation is a useful tool, it does have some limitations. It can only be applied to circuits with three phases or branches. Additionally, the transformation is only valid for circuits with balanced loads, meaning all three phases have equal resistances. If the circuit has unbalanced loads, the results may not be accurate.
