I Lost Aspheric Lens Design Equation Found

  • I
  • Thread starter Thread starter halibut
  • Start date Start date
  • Tags Tags
    Design Lens Lost
AI Thread Summary
The discussion centers on the rediscovery of an aspheric lens design equation that was previously lost. A member located a preserved link to the Thorlabs page containing the equation, which addresses ideal shapes for lenses without spherical aberration. The updated thread now includes the correct link to access the information directly. A screencap of the formula was also shared, adhering to Fair Use guidelines. This exchange highlights the importance of preserving and sharing valuable technical resources in optical design.
halibut
Messages
1
Reaction score
1
Hi all,

I was interested in ideal shapes for lenses and Google popped up this very old thread:
"Mathematical shape for a lens with no spherical aberration"A member named Redbelly98 replied (<link>) with a now-broken link to a Thorlabs page that gave an aspheric lens equation.

Took a minute, but I think this is the page with that equation (on the page's "Lens Equation" tab) safely preserved on Internet Archive:
"Molded Glass Aspheric Lenses: 350 - 700 nm or 400 - 600 nm AR Coating" - Thorlabs

Science news on Phys.org

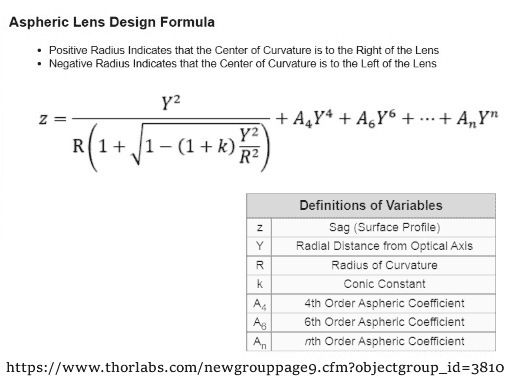

I edited a screencap of the formula (for compactness)
from the ThorLabs web-page, by virtue of Fair Use
bcoz U.S.Code Title 17, Section 107, blah blah blah
